Product Details:
|

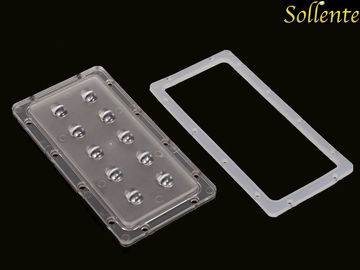

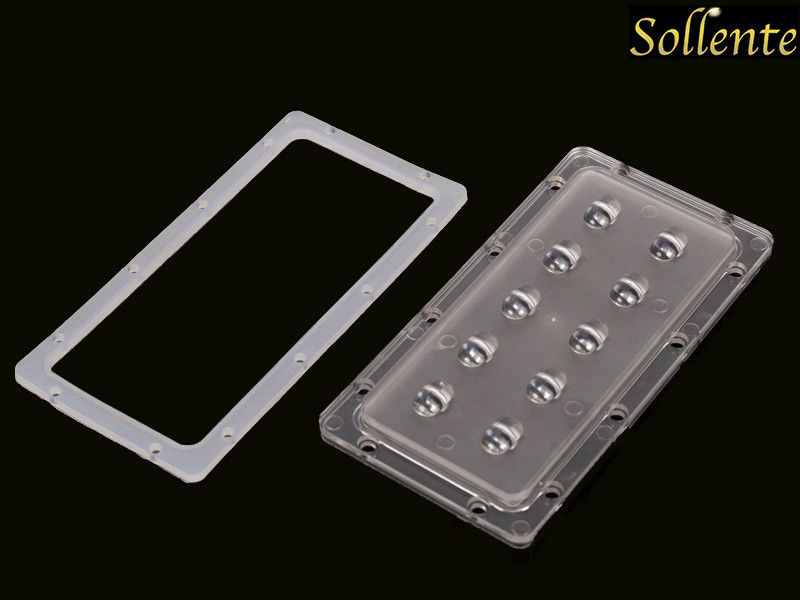

| Product Name: | Replacement 10w Led Street Light Components For Metal Halide Light | Lens Size: | L143 X W73 X H10mm |
|---|---|---|---|
| Beam Angle: | 70x140 Degree | Match Led: | Bridgelux Chip Led, Epistar Chip Led |
| Material: | PC | Efficiency: | 89% |
| Led Voltage: | 3-3.6V | Lumen: | 160-170 Lm/W, 130-140lm/W |
| High Light: | replaceable led module,LED Light Components |
||
1. Dimension: L143 x W73 x H10mm
2. Beam Angle: 70x140 degree
3. Match Led: High power led , K2 , P4
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, Led driver
6. Efficiency: >91%
Specifications:
| Product Name | Replacement 10w led Street Light Components for Metal Halide Light |
| Model No | SOE-SL10W-Z |
| Main parts | 30W Lens+ Silicone gasket + AL PCB mounting leds + LED driver (Meanwell Led driver is available) |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | L143 x W73 x H10mm |
| PCB Size | 121*52*1.6mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
10 series, PCB could design as clients reuqest |
| Led details | 3-3.6V , 160-170 lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America |
10W Replacement of street light lens drawing:
Features :
3x10 30W has a range of Street light and High bay light modules which have multiple lenses in a single array. Lens modules provide an easy and cost effective solution. All the Led modules are designed to allow modularization of light engines. They are also future-proof solutions allowing customers to easily adapt into latest generation of LEDs without compromising the design and performance of the luminaire.
Competitive Advantage:
1). Our High power led using high quality imported Bridgelux 45mil Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
