Product Details:
|
Product Name: | Led Street Light Components | Lens Dimension: | L250*W74*9.6mm |
---|---|---|---|
PCB: | L228*W53*H1.5mm | Beam Angle: | 87x134 Degree |
Match Led: | Lumileds K2, Edison A-1 A-5 S5 | Material: | Optical Grade PC |
Working Temperature: | -35℃ +55℃ | Efficiency: | 91% |
Highlight: | replaceable led module,LED Light Components,87*134 Degree Outdoor LED Module |
1. Dimension: L250*W74*9.6mm
2. Beam Angle: 87X134 degree
3. Match Led: Lumileds K2, Edison A-1 A-5 S5
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink
6. Efficiency: >91%
Specifications:
Product name |
30W Bridgelux High Luminous Efficiency Led Street Light Components |
Model No |
SOE-SL30W-LM87X134 |
Main parts | 30W Lens+ Silicone gasket + AL PCB mounting leds + LED driver , (Meanwell Led driver is available) |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | L250*W74*H9mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit | 10 series 3 parallel, or As client's reuqest |
LED details | 3V-3.6V , 300-350mA , 160-170lm/w, CRI 70 |

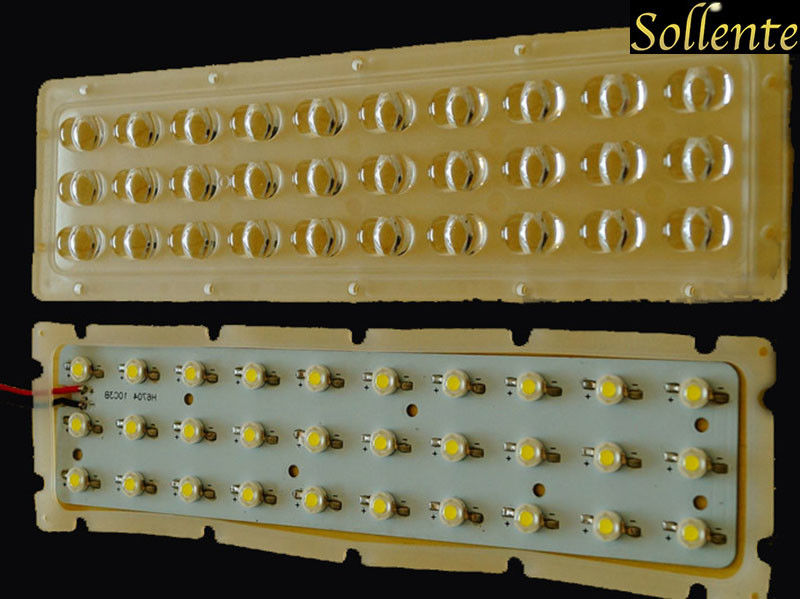

Led Street light Components Pictures:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and oval view angle, and adapts to different requirement of street lighting, like 30w, 60w, 90w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket, Apply to street light and solar street light, Tunnel Light, Gas station Light.
Led Street Light Lens Drawing:
Led Street Light Lens Distribution:
LED Applications
A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.
Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.
You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.
Product Application:
Led Street Light
Led High bay Light
Led Gas Station Light
Led Tunnel Light
