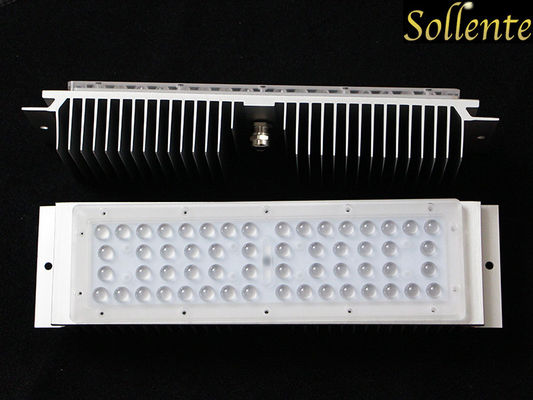

Product Details:
|
Product Name: | Non-Glare 5500-6000K Daylight White Led Street Light Components | Lens Size: | L256.6*W78.6*H7.1mm |
---|---|---|---|
Heat Sink: | L310*W80*H43mm | Beam Angle: | 30 Degree |
Match Led: | 3030 SMD , OSRAM S5, Lumileds 2D | Material: | Optical Grade PC |
Efficiency: | 91% | PCB Circuit: | 7 Series 8 Parallels |
Led Voltage: | 6-6.8V | Led Current: | 150mA |
High Light: | replaceable led module,Integrated LED Module |
1. Dimension: L256*W78*7.1mm
2. Beam Angle: 30 degree
3. Match Led: SMD3030
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
Product Name |
Non-Glare 5500-6000K Daylight White Led Street Light Components |
Model No | SOE-SL56W-30F |
Main parts | 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | 256.6x78.6x7.1mm |
PCB Size | 233x55x1.5mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit |
7 series 8 parallel |
LED details | 6-6.8V , 150mA , 120-130lm/w |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
3030SMD 30 degree Led Street Light Lens Drawing:
Heat Sink Drawing:
30 degree 3030SMD Led Street Light Lens Distribution:
Features :
Related SMD 3030 Led Street Light Lens:
Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
SOE-SSL56W30F
|
30° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W60F
|
60° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W90F
|
90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W30x70F
|
30x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W60x90F
|
60x90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W145x70F
|
145x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W155x80F
|
155x80°, Asymmetric 35° | 256.6x78.6x7.1mm | 233x55x1.5mm |
SOE-SL56W90x90F
|
90x90° | 250x74x8.2mm | 229x53x1.5mm |
SOE-SL56W145X75F
|
145X75° | 250x74x8.2mm | 229x53x1.5mm |
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
Application:
Indoor architectural & general lighting
Industrial lighting
Retail/supermarkets
Wall washing / flood lighting
Indoor ceiling mounted luminaires Lowbay
Warehouse lighting
OEM
We can design and make the new mold lens and new Aluminium PCB according to customer's request and design. Customers are satisfied with the light effection for the new molds.
In order to keep product with high quality, All of our Led modules use import raw material, like Opticial lens with PC matierail Tenjin. For High power Leds, we use 45mil Bridgelux chip with original package and low attenuation. Also we use imported Led, like Cree XTE, XPE, XPG, Osram DURIS® S 5, Lumileds LUXEON 3030 2D.
