Home ProductsLED Street Light Components

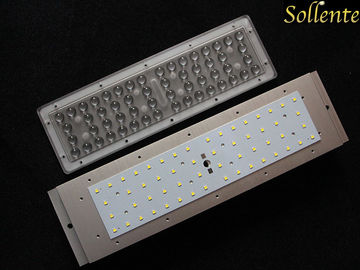

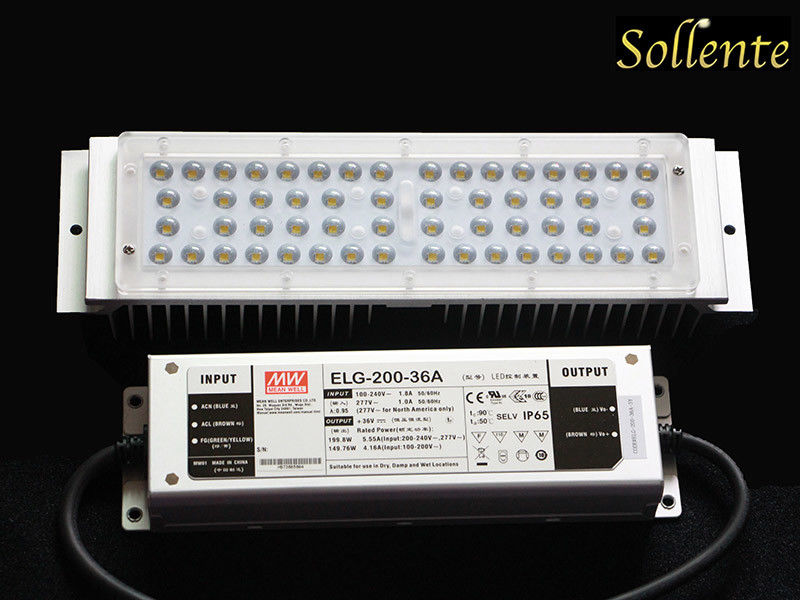

200W 3Y Cable Meanwell Driver LED Street Lighting Components

Certification
China Sollente Opto-Electronic Technology Co., Ltd certification
China Sollente Opto-Electronic Technology Co., Ltd certification
Customer Reviews
Since the beginning of our company's establishment, we have always received your led street light modules, thanks to your quality and professionalism.

—— Mr. KULIQI

Hope we will expand our business by continuing a cooperation like you, Thank you Alina for the help you gave me every time I need.

—— Mr. VALON

a very big thanks to you & your company for the impressively good service & high quality of your goods that you have supplied us, on time, good price.

—— Mr. RB van der Merwe

I'm Online Chat Now

200W 3Y Cable Meanwell Driver LED Street Lighting Components

200W 3Y Cable Meanwell Driver LED Street Lighting Components
200W 3Y Cable Meanwell Driver LED Street Lighting Components 200W 3Y Cable Meanwell Driver LED Street Lighting Components

Large Image :  200W 3Y Cable Meanwell Driver LED Street Lighting Components

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56W-30F
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

200W 3Y Cable Meanwell Driver LED Street Lighting Components

Description
Product Name: Led Street Light Components With 200W Meanwell Driver 3Y Cable Lens Size: L256.6*W78.6*H7.1mm
Heat Sink: L310*W80*H43mm Beam Angle: 30 Degree
Match Led: 3030 SMD , OSRAM S5, Lumileds 2D Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 7 Series 8 Parallels
Led Voltage: 6-6.8V Led Current: 150mA
High Light:

replaceable led module

,

LED Light Components

200W 3Y Cable Meanwell Driver LED Street Lighting Components ​





Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   30 degree

3. Match Led:     SMD3030

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:

Product Name

Led Street Light Components with 200W Meanwell Driver 3Y Cable

Model No SOE-SL56W-30F
Main parts 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 8 parallel

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia











3030SMD 30 degree Led Street Light Lens Drawing:

200W 3Y Cable Meanwell Driver LED Street Lighting Components 0









Heat Sink Drawing:

200W 3Y Cable Meanwell Driver LED Street Lighting Components 1







30 degree 3030SMD Led Street Light Lens Distribution:

200W 3Y Cable Meanwell Driver LED Street Lighting Components 2







Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 155x80°, 145x75°,60x90°, 90° , 30x70° etc.







Related SMD 3030 Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm

SOE-SL56W145X75F



145X75° 250x74x8.2mm 229x53x1.5mm





Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.









Application:

Indoor architectural & general lighting

Industrial lighting

Retail/supermarkets

Wall washing / flood lighting

Indoor ceiling mounted luminaires Lowbay

Warehouse lighting







OEM

We can design and make the new mold lens and new Aluminium PCB according to customer's request and design. Customers are satisfied with the light effection for the new molds.



In order to keep product with high quality, All of our Led modules use import raw material, like Opticial lens with PC matierail Tenjin. For High power Leds, we use 45mil Bridgelux chip with original package and low attenuation. Also we use imported Led, like Cree XTE, XPE, XPG, Osram DURIS® S 5, Lumileds LUXEON 3030 2D.
