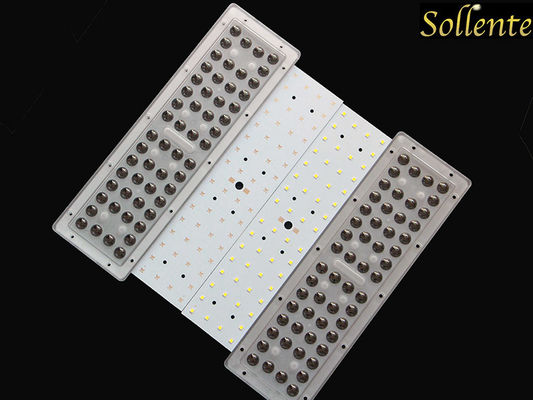

Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module

Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module
Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module

Large Image :  Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56W-90FL
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module

Description
Product Name: Led Street Lamp Components For Gas Station , 90 Degree Outdoor Lamp Modules Lens Size: L256.6*W78.6*H7.1mm
PCB Size: L233xW55xH1.5mm Beam Angle: 90 Degree
Match Led: 3030 SMD , OSRAM S5 Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 7 Series 8 Parallels
Led Voltage: 6-6.8V Heat Sink: L310*W80*H43mm
Led Current: 150mA
High Light:

replaceable led module

,

LED Light Components

Led Street Lamp components for Gas Station , 90 degree Outdoor Lamp Modules



Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   90 degree

3. Match Led:      SMD 3030 , OSRAM S5

4. Materials :       Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Light Housing

6. Efficiency:        >91%





Specifications:

Product Name

Led Street Lamp components for Gas Station , 90 degree Outdoor Lamp Modules

Model No SOE-SL56W-90FL
Main parts 56W Lens+ Silicone gasket + AL PCB mounting leds + Housing , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 8 parallel or Customize

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia











90Degree SMD Led Street Light Lens Drawing:

Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module 0

















Outdoor Light Lens Distribution:

Aluminm LED Street Light Components , 90 Degree Outdoor LED Lamp Module 1







Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 155x80°, 145x75°,60x90°, 90° , 30x70° , 30° , 60° etc.









Related SMD 3030 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm









Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available









Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for Flood light, High bay Light, Industrial Leight, Warehourse Light



LED Applications



A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.



Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.



You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.
