Product Details:
|
| Product Name: | COB Led Holder Connectors With UL Certificate For Array COB Led Modules | Diameter: | 34mm 35mm 39mm 44mm |
|---|---|---|---|
| Height: | 4mm 4.15mm | Color: | White |
| Certificate: | CRU, UL | Material: | PBT V0 |
| Wire Spec: | 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) | Match Led: | Cree CITIZEN Edison |
| High Light: | led cob holder,cree led holder |
||
1. Dimension: Diameter 34mm 35mm 39mm 44mm
2. Match Led: CITIZEN CREE EDISON LED ARRAY
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
| Product Model | 1512-1919 | |
|
72 V | |
| Amperage Rating | 3.6 | |
| Weight | 3g | |
| Screw Size | M3 | |
| Wire Strip Length | 6mm (.24") | |
| Wire | 18-22AWG Push-In (.32-.81mm2) | |
| Body Material | PBT UL94 V-0 | |
| Contacts | Beryllium Copper Nickel Plated | |
| Holding Clip | Stainless Steel | |
| Screw Torque (Max) | 10 LBS | |
| Temp Rating | 155C | |
| RoHS Compliant | Yes | |
| Package Quantity | 1,000 per carton | |

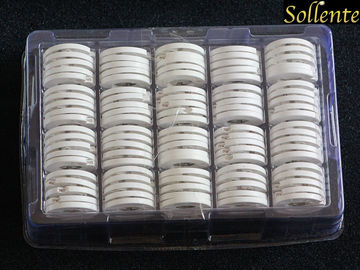

| Packaging | Plastic Trays | |
| Array Source |
CITIZEN CREE EDISON |
|
| Array Series | / | |
| UL File # | E476326 |
Advantages
LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.
Changing political and social conditions have contributed to the LED’s success. This Solerless holder meets the need for time saving and reduce working procedure solutions unlike any other holder. This is where the COB LED Array Connector is groundbreaking

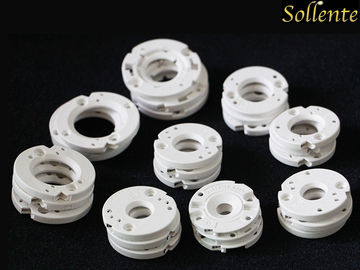

COB HOLDER Picture:
Related COB HOLDER:
| Model No. | Lens Dimensions | Match Led |
|
SOE-CH1512 |
D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
|
SOE-CH1816 |
D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
|
SOE-CH1830 |
D35mm*H4.15mm | CXA1830 |
|
SOE-CH2520 |
D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
|
SOE-CH3050 |
D44mm*H4.15mm | CXA3050, CXA3070 |
|
SOE-CH1926 |
D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
| SOE-CH1313 | D36mm*H4mm |
Citizen Series: CLL022, CLU024, CLU026 |
| SOE-CH1919 | D36mm*H4mm |
Citizen Series: CLL032, CLU034, CLU036 |
Our team
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
