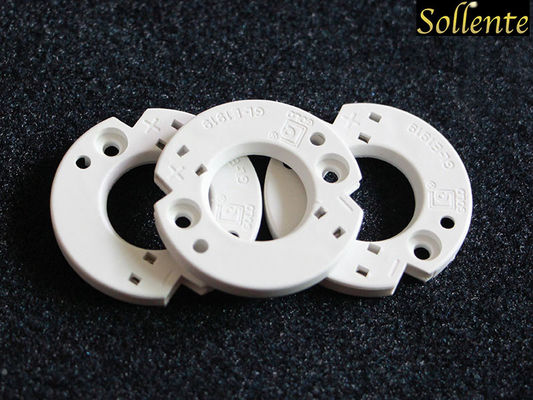

Product Details:
|
| Product Name: | CRU Approved 10W COB LED Holder Use For CLU036 COB LED Lights | Diameter: | 36mm |
|---|---|---|---|
| Height: | 4mm | Color: | White |
| Certificate: | CRU, UL | Material: | PBT V0 |
| Wire Spec: | 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) | Match Led: | CITIZEN CLL 032 034 036, EDISON HM16 24 30 |
| High Light: | led array holder,led cob holder |
||
1. Dimension: Diameter 36mm H4mm
2. Match Led: CITIZEN CLL 032 034 036, EDISON HM16 24 30
COB Led Array base 19.2x19.2mm Luminous surface diameter 17mm
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
| Product Model | E1919 | |
|
72 V | |
| Amperage Rating | 3.6 | |
| Weight | 3g | |
| Screw Size | M3 | |
| Wire Strip Length | 6mm (.24") | |
| Wire | 18-22AWG Push-In (.32-.81mm2) | |
| Body Material | PBT UL94 V-0 | |
| Contacts | Beryllium Copper Nickel Plated | |
| Holding Clip | Stainless Steel | |
| Screw Torque (Max) | 10 LBS | |
| Temp Rating | 155C | |
| RoHS Compliant | Yes | |
| Package Quantity | 1,000 per carton | |
| Packaging | Plastic Trays | |
| Array Source |
CITIZEN, EDISON |
|
| Array Series | CITIZEN CLL 032 034 036, EDISON HM16 24 30 | |
| UL File # | E476326 |
It's a single piece, solderless connector for CITIZEN CLL 032 034 036, EDISON HM16 24 30 or COB Led Array base 19.2x19.2mm Luminous surface diameter 17mm
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.
The COB LED Holder for the CITIZEN and EDISON Array is an electrical connector and mechanical holder to simplify installation of the COB LED Array without solder connections.
Material:
Polybutylene terephthalate (PBT) is a thermoplastic engineering polymer that is used as an insulator in the electrical and electronics industries. It is a thermoplastic (semi-)crystalline polymer, and a type of polyester.
PBT is resistant to solvents, shrinks very little during forming, is mechanically strong, heat-resistant up to 150 °C (or 200 °C with glass-fibre reinforcement) and can be treated with flame retardants to make it noncombustible.
1919 COB HOLDER Drawing:
Related COB HOLDER:
| Model No. | Lens Dimensions | Match Led |
| C1512 |
D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
| C1816 |
D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
| C1830 |
D35mm*H4.15mm | CXA1830 |
| C2520 |
D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
| C3050 |
D44mm*H4.15mm | CXA3050, CXA3070 |
|
C3590
|
D59.5mm*H3mm+3mm | CXA/CXB3590 |
| CT1926 |
D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
| E1313 | D36mm*H4mm | Citizen Series: CLL022, CLU024, CLU026 Edison Series: HM05, HM09, HM13 |
| E1919 | D36mm*H4mm |
Citizen Series: CLL032, CLU034, CLU036 |
