Product Details:
|
| Product Name: | No Need Welding COB Led Connector For 50W Floodlight Emitting Diodes | Diameter: | 34mm 35mm 36mm 39mm 44mm |
|---|---|---|---|
| Height: | 3.6mm 4mm 4.15mm | Color: | White |
| Certificate: | CRU, UL | Material: | PBT V0 |
| Wire Spec: | 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) | Match Led: | CREE COB LED ARRAY |
| High Light: | led array holder,led cob holder |
||
1. Dimension: Diameter 34mm 35mm 39mm 44mm
2. Match Led: CREE LED ARRAY CXA 15XX 25XX 30XX
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
| Product Model | 1512-3050 | |
|
72 V | |
| Amperage Rating | 3.6 | |
| Weight | 3g | |
| Screw Size | M3 | |
| Wire Strip Length | 6mm (.24") | |
| Wire | 18-22AWG Push-In (.32-.81mm2) | |
| Body Material | PBT UL94 V-0 | |
| Contacts | Beryllium Copper Nickel Plated | |
| Holding Clip | Stainless Steel | |
| Screw Torque (Max) | 10 LBS | |
| Temp Rating | 155C | |
| RoHS Compliant | Yes | |
| Package Quantity | 1,000 per carton | |
| Packaging | Plastic Trays | |
| Array Source |
CREE |
|
| Array Series | CREE LED ARRAY CXA 15XX 25XX 30XX | |
| UL File # | E476326 |
Advantages
The COB LED Holder for the Cree CXA15XX 25XX 30XX Array is an electrical connector and mechanical holder to simplify installation of the Cree CXA15XX 25XX 30XX Array without solder connections.

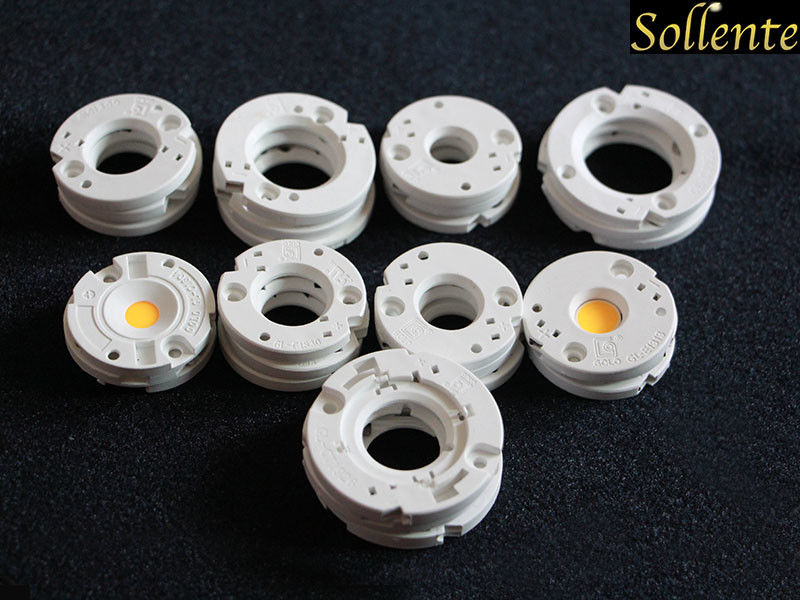

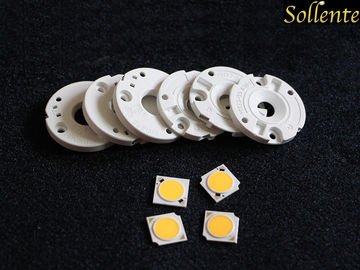

COB HOLDER Picture:
Related COB HOLDER:
| Model No. | Lens Dimensions | Match Led |
| C1512 |
D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
| C1816 |
D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
| C1830 |
D35mm*H4.15mm | CXA1830 |
| C2520 |
D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
| C3050 |
D44mm*H4.15mm | CXA3050, CXA3070 |
|
C3590
|
D59.5mm*H3mm+3mm | CXA/CXB3590 |
| CT1926 |
D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
| E1313 | D36mm*H4mm | Citizen Series: CLL022, CLU024, CLU026 Edison Series: HM05, HM09, HM13 |
| E1919 | D36mm*H4mm |
Citizen Series: CLL032, CLU034, CLU036 |
