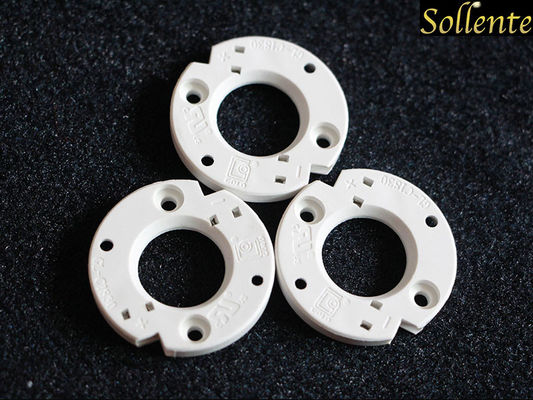

Product Details:
|
Product Name: | Round COB Led Holder For CXA 1830 , Led Connector For Array Leds | Diameter: | 35mm |
---|---|---|---|
Height: | 4.15mm | Color: | White |
Certificate: | CRU | Material: | PBT V0 |
Wire Spec: | 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) | Match Led: | CXA1830 |
High Light: | led array holder,led cob holder |
1. Dimension: Diameter 35mm H4.15mm
2. Match Led: CXA1830
COB Led Array base 18x18mm Luminous surface diameter <16.5mm
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
Voltage Rating | 72 V |
Amperage Rating | 3.6 |
Weight | 3g |
Screw Size | M3 |
Wire Strip Length | 6mm (.24") |
Wire | 18-22AWG Push-In (.32-.81mm2) |
Body Material | PBT UL94 V-0 |
Contacts | Beryllium Copper Nickel Plated |
Holding Clip | Stainless Steel |
Screw Torque (Max) | 10 LBS |
Temp Rating | 155C |
RoHS Compliant | Yes |
Package Quantity | 1,000 per carton |
Packaging | Plastic Trays |
Array Source |
Cree |
Array Series | CXA1830 |
UL File # | E476326 |
It's a single piece, solderless connector for Cree CXA/B 1830 or COB Led Array base 18x18mm Luminous surface diameter <16.5mm
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.
Material:
Polybutylene terephthalate (PBT) is a thermoplastic engineering polymer that is used as an insulator in the electrical and electronics industries. It is a thermoplastic (semi-)crystalline polymer, and a type of polyester.
PBT is resistant to solvents, shrinks very little during forming, is mechanically strong, heat-resistant up to 150 °C (or 200 °C with glass-fibre reinforcement) and can be treated with flame retardants to make it noncombustible.
1830 COB HOLDER Drawing:
Related COB HOLDER:
Model No. | Lens Dimensions | Match Led |
C1512 |
D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
C1816 |
D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
C1830 |
D35mm*H4.15mm | CXA1830 |
C2520 |
D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
C3050 |
D44mm*H4.15mm | CXA3050, CXA3070 |
C3590
|
D59.5mm*H3mm+3mm | CXA/CXB3590 |
CT1926 |
D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
E1313 | D36mm*H4mm | Citizen Series: CLL022, CLU024, CLU026 Edison Series: HM05, HM09, HM13 |
E1919 | D36mm*H4mm |
Citizen Series: CLL032, CLU034, CLU036 |
Our team
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
