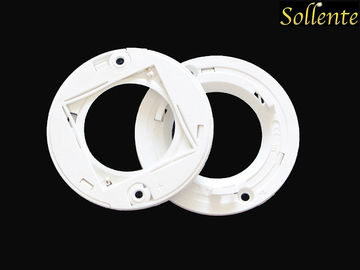

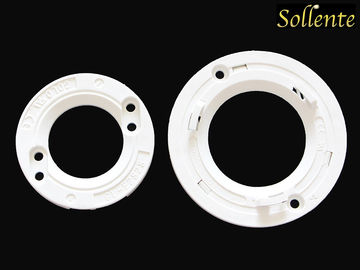

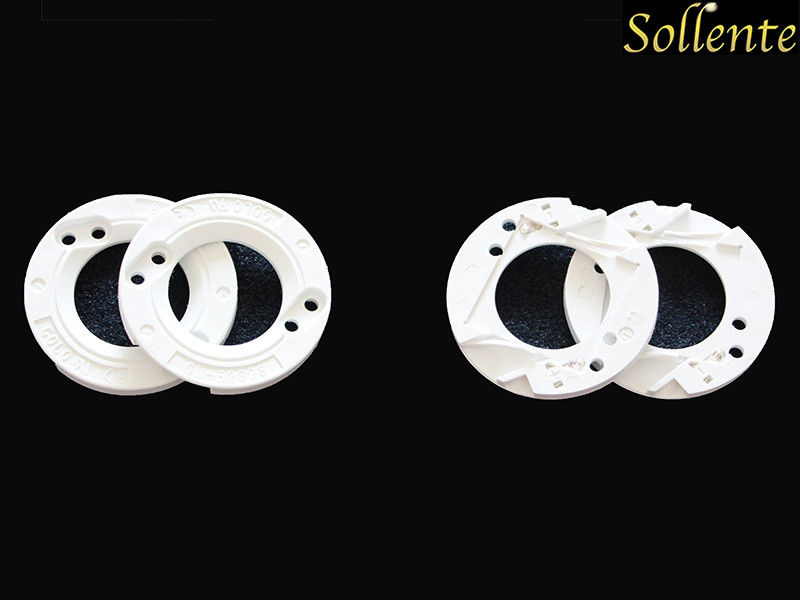

Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts

Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts
Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts

Large Image :  Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: C3590
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Packaging Details: Carton Box
Delivery Time: 10-18 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000 pcs / week

Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts

Description
Product Name: LED COB Holder Solderless With Beryllium Copper Nickel Plated Contacts Diameter: 59.5mm
Height: 6mm Color: White
Certificate: CRU Material: PBT V0
Wire Spec: 18AWG, 20AWG, 22AWG (0.32-0.81m㎡) Match Led: CXA3050, 3070
High Light:

led array holder

,

led cob holder

LED COB Holder Solderless With Beryllium Copper Nickel Plated Contacts



Quick Details:

1. Dimension:     Diameter 59.5mm H6mm
2. Match Led:     CXA 3590
                           COB Led Array base 27.5x27.5mm Luminous surface diameter 25.5mm
3. Materials :      PBT V0
4. Wire Spec.     18AWG, 20AWG, 22AWG (0.32-0.81m㎡)






Specification:



Voltage Rating 72 V
Amperage Rating 3.6
Weight 4g
Screw Size M3
Wire Strip Length 6mm (.24")
Wire 18-22AWG Push-In (.32-.81mm2)
Body Material PBT UL94 V-0
Contacts Beryllium Copper Nickel Plated
Holding Clip Stainless Steel
Screw Torque (Max) 10 LBS
Temp Rating 155C
RoHS Compliant Yes
Package Quantity 1,000 per carton
Packaging Plastic Trays
Array Source

Cree

Array Series CXA3590
UL File # E476326






It's a single piece, solderless connector for Cree CXA/B3050 3070 series
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.


Advantages
LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.




COB HOLDER Drawing:
Solderless 3590 COB LED Holder With Beryllium Copper Nickel Plated Contacts 0









Related COB HOLDER:

Model No. Lens Dimensions Match Led

C1512


D35mm*H4.15mm CXA1507, CXA1512, CXA1520

C1816


D35mm*H4.15mm CXA1816, CXB1820, CXA1850

C1830


D35mm*H4.15mm CXA1830

C2520


D39mm*H4.15mm CXA2520, CXB2530, CXA2540, CXA2590

C3050


D44mm*H4.15mm CXA3050, CXA3070

CT1926


D35mm*H4.15mm Citizen Series: AC COB CLL296/297/298
E1313 D36mm*H4mm

Citizen Series: CLL022, CLU024, CLU026

Edison Series: HM05, HM09, HM13

E1919 D36mm*H4mm

Citizen Series: CLL032, CLU034, CLU036

Edison Series: HM16, HM24, HM30





Packing and Shipping:
1. Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7. Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: Exported package, also can be customized according to customer requirements.
