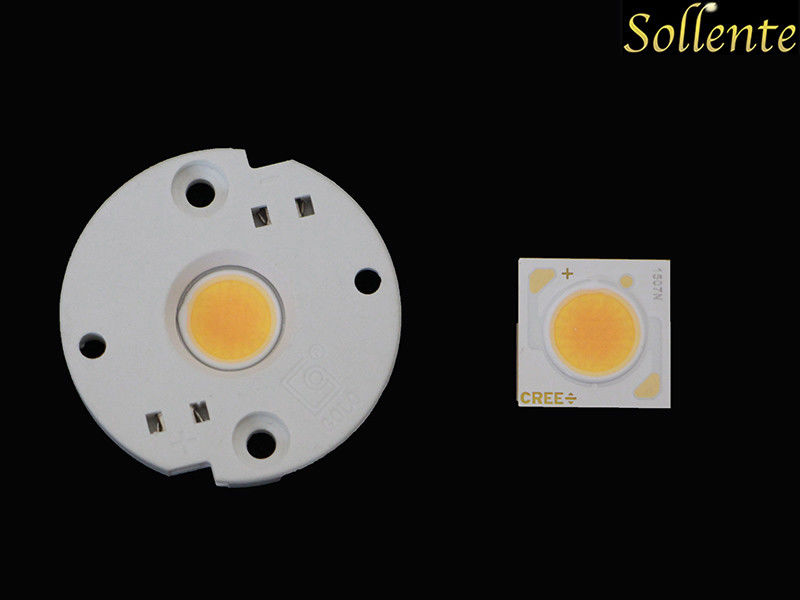

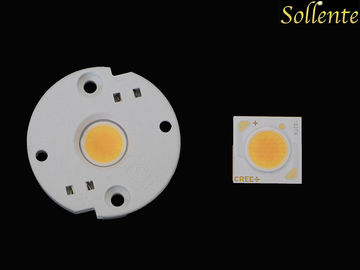

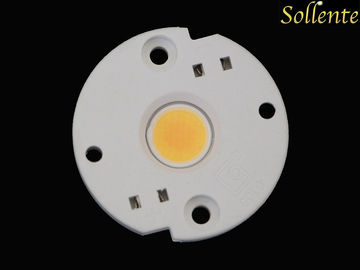

|Product Name:||35mm Diameter COB Led Holder Nickel Plated With Cree LED CXA 1507||Diameter:||35mm|
|Certificate:||CRU, UL||Material:||PBT V0|
|Wire Spec:||18AWG, 20AWG, 22AWG (0.32-0.81m㎡)||Match Led:||CREE CXA 1507 1512 1520|
led array holder,
led cob holder
1. Dimension: Diameter 35mm H4.15mm
2. Match Led: CREE CXA 1507 1512 1520
COB Led Array base 16x16mm Luminous surface diameter 11mm
3. Materials : PBT V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
|Wire Strip Length||6mm (.24")|
|Wire||18-22AWG Push-In (.32-.81mm2)|
|Body Material||PBT UL94 V-0|
|Contacts||Beryllium Copper Nickel Plated|
|Holding Clip||Stainless Steel|
|Screw Torque (Max)||10 LBS|
|Package Quantity||1,000 per carton|
|Array Series||CREE CXA 1507 1512 1520|
|UL File #||E476326|
It's a single piece, solderless connector for CREE CXA 1507 1512 1520 or COB Led Array base 16x16mm Luminous surface diameter 11mm
Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.
The COB LED Holder for the CITIZEN and EDISON Array is an electrical connector and mechanical holder to simplify installation of the COB LED Array without solder connections.
LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.
1512 COB HOLDER Drawing:
Related COB HOLDER:
|Model No.||Lens Dimensions||Match Led|
|D35mm*H4.15mm||CXA1507, CXA1512, CXA1520|
|D35mm*H4.15mm||CXA1816, CXB1820, CXA1850|
|D39mm*H4.15mm||CXA2520, CXB2530, CXA2540, CXA2590|
|D35mm*H4.15mm||Citizen Series: AC COB CLL296/297/298|
Citizen Series: CLL022, CLU024, CLU026
Citizen Series: CLL032, CLU034, CLU036
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18 working days.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
