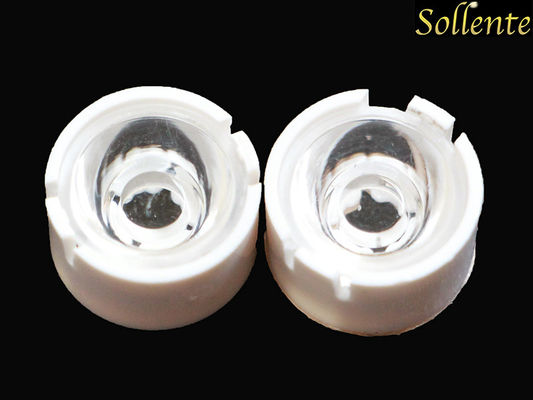

Product Details:
|
Product Name: | 13mm Round PMMA Led Optical Lens 45 Degree | Lens Size: | Diameter 11.8mm |
---|---|---|---|
PCB Size: | Diameter 20mm | Beam Angle: | 30°, 45°, 60°, 90° |
Match Led: | Cree XTE XPE XPG, SMD 3535 | Material: | Optical Grade PC |
Efficiency: | 91% | Led Voltage: | 3-3.6V/W |
Holder Size: | Diameter 13.1mm | ||
Highlight: | led light module,led light lens |
1. Dimension: Diameter 13.1mm, height 7.7mm
2. Beam Angle: 30°, 45°, 60°, 90°
3. Match Led: Cree XTE XPE XPG, SMD 3535
4. Materials : Optical Grade PC

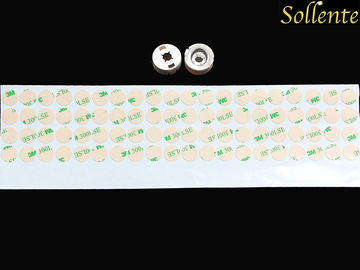

5. Accessories: Led lens, Sticker, PCB soldering Led
6. Efficiency: >91%
Specifications:
Product Name | 13mm Round PMMA Led Optical Lens 45 degree , CREE XTE Led Lens with Sticker |
Model No | SOE-13MM-90 |
Main parts | 1W Lens + 3M sticker |
Lens Material | PMMa Optical |
MOQ | 1pcs |
Lens size | Diameter 11.8mm, height 6.8mm |
PCB Size | Diameter 20mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit |
1 in series |
LED details | 3-3.6V/W, 350mA, 150lm/w |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
Led optical Lens Drawing:
Related SMD 3030 Led Street Light Modules:
Model No. | Lens angle | Lens size(Diameter*Height) | PCB size(Diameter*Thickness) |
SOE-13MM-30
|
30° | 11.8x6.7mm | 20X1.5mm |
SOE-13MM-45
|
45° | 11.8x6.7mm | 20X1.5mm |
SOE-13MM-60
|
60° | 11.8x6.7mm | 20X1.5mm |
SOE-13MM-90
|
90° | 11.8x6.7mm | 20X1.5mm |
Competitive Advantage:
Material: Teijin Polycarbonate with UL Certificate.
Our team:
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
PMMA
PMMA is a strong and lightweight material.
PMMA transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces due to its refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV) light at wavelengths below about 300 nm (similar to ordinary window glass).
Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.
PMMA is an economical alternative to polycarbonate (PC) when extreme strength is not necessary. Additionally, PMMA does not contain the potentially harmful bisphenol-A subunits found in polycarbonate. It is often preferred because of its moderate properties, easy handling and processing, and low cost.
Packing and Shipping:
1. Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7. Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: Exported package, also can be customized according to customer requirements.
