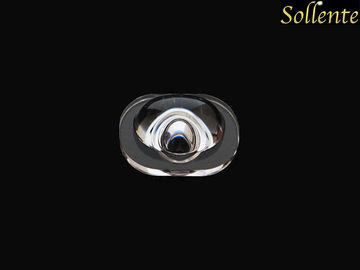

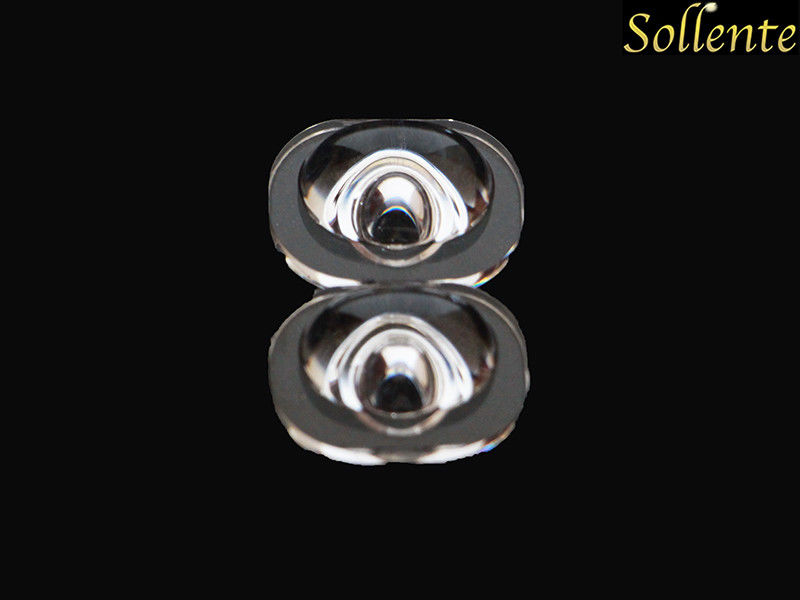

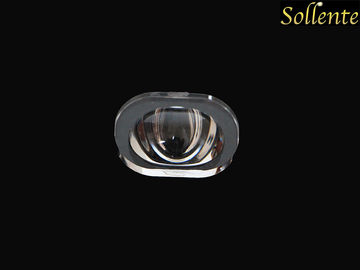

Product Details:
|
| Product Name: | Asymmetric 30° 1 Watt SMD3535 LED Optics Lenses | Lens Size: | 21.34x15.82mm |
|---|---|---|---|
| PCB Size: | Diameter 20mm | Beam Angle: | 60x120°, Asymmetric 30° |
| Match Led: | SMD 3535, CREE XTE, XPE | Material: | Optical Grade PMMA |
| Efficiency: | 91% | Led Voltage: | 3-3.6V/W |
| High Light: | led light fittings,led light lens,SMD3535 led light lens |
||
| Model No. | SOE-SL1W-60x120A |
| Beam angle | 60x120°, Asymmetric 30° |
| Holder Size | / |
| Lens size | 21.34x15.82mm |
| Led chips | SMD3535, Cree XTE XPE leds |
| Temp | -35 to + 90 degree |
| Standards | SGS/ROHS |
| Product name | Led Peanut Lens |
| Transmittance | 93% |
| Accessory | / |
| Lens surface | Clear, Frosted |
| Application | Wall-washer light,Ceiling light ,Spot Light |
Drawing for Asymmetric 30° LED Optics Lenses:
Material: PC
Polycarbonate(PC) is a durable material. It has high impact-resistance. The characteristics of polycarbonate compare to those of polymethyl methacrylate (PMMA, acrylic), but polycarbonate is stronger and will hold up longer to extreme temperature. Polycarbonate is highly transparent to visible light, with better light transmission than many kinds of glass.
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Led lens distribution:
NOTE: The typical divergence will be changed by different color, chip size and chip position tolerance. The typical total divergence is the full angle measured where the luminous intensity is half of the peak value.
