Product Details:
|
| Product Name: | IP 67 Outdoor Led Light Retrofit Kits | Lamp Size: | L300*W70*H47mm |
|---|---|---|---|
| Beam Angle: | 150x80 Degree | Match Led: | Lumileds 3030 SMD , Osram |
| Material: | Optical Grade PC | Efficiency: | 91% |
| PCB Circuit: | 8 Series 8 Parallels | Led Voltage: | 3-3.4V |
| Led Current: | 350mA | ||
| High Light: | pole light led retrofit kits,LED retrofit light kit |
||
1. Dimension: L300*W70*H47mm
2. Beam Angle: 150x80 degree
3. Match Led: SMD3030
4. Materials : Optical Grade PC, Aluminm

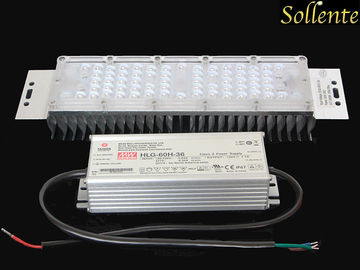

5. Accessories: Lamp with Led driver
6. CRI: 70 or 80
Specifications:
| Model | Input Voltage | Lamp Bead | System consumption | LED luminous efficiency | Color Temperature |
|
SOE-50W-MD
|
DC24V | Lumileds, Osram | 50W | 100-120lm/W |
3000-6500K
|
| CRI | Lamp’s efficiency | Ambient temperature | Working life-span | IP Grade | |
| Ra≥70 | >90% | -30°C- +55°C | >50000H | IP67 |
Drawing:
Distribution:
3030 Street Light Module uses high brightness LED with diverse optical lenses to create 5 different light patterns. For symmetry angle design ( 60° and 90°), it is suitable for flood light, high bay and street light applications. On the other hand, the asymmetry design (80°X150°) can effectively guide light to the right place, improving light efficiency and avoid the waste of light source. Sollente can provide customized optical solutions according to your light shape and angle demand.
Features :
■ 4 kinds of optical angle (120°*65° / 150° *80° /60° /90°)
■ Light weight and easy assembly
■ Design-in quick expansion
Industry Leading heat dissipation design
Adopt AL6063 aluminum housing, IP67. Simple but original design, which ensures excellent ventilating effect, corrosion and wind resistance.
Unique elegant appearance
A new design concept about a conventional breakthrough in housing, for offering highly integration solving solution.
Modularization led streetlight High lumens
Screw fixed design in lamp base
Design with air holes for heat dissipation
Stable color temperature, high CRI, high Lumens
Adopt first-class brand Leds, high lumens and low thermal resistance. Optional led brands, such as Osram, Lumileds, Cree. Optical light distribution, no glare, no light pollution, high uniformity.
Adopt excellent technology in optical lens
To achieve super high lumens, elegant appearance and IP67
Excellent Design
Adopt high brightness LEDs, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours. Impact and shock resistance, no UV and IR radiation. It is also reliable when working in low voltage.
Using aluminum housing and strong anti-corrosion, waterproof, dust-proof. With oxidation treatment on the surface of the radiator, it is durable and impact-resistant. The integrative structure simplify the spot wiring, it's more easy for installation and maintenance. Sealing parts are made of silicon rubber, which keeps oil-resistant, acid-resisting, alkali-resisting and heat-resistant.
RD
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
