Product Details:
|
| Product Name: | Tennis Court LED Street Light Retrofit Kits With LED Luxeon 3030 2D | Lens Dimension: | L256.6*W78.6*7.1mm |
|---|---|---|---|
| Heat Sink: | L310*W80*H43mm | Beam Angle: | 30, 60, 90, 30x70, 145x70 Degree |
| Match Led: | OSRAM Duris S5 Luxons 3030 2D | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +100℃ | Efficiency: | 91% |
| High Light: | High Bay LED Retrofit Kits,LED retrofit light kit |
||
1. Dimension: L256.6*W78.6*7.1mm
2. Beam Angle: 145x70 degree
3. Match Led: SMD 3030 , Duris S2 , Lumileds 2D
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name |
Tennis Court LED Street Light Retrofit Kits with LED Luxeon 3030 2D |
| Model No | SOE-SL56W-145x70F |

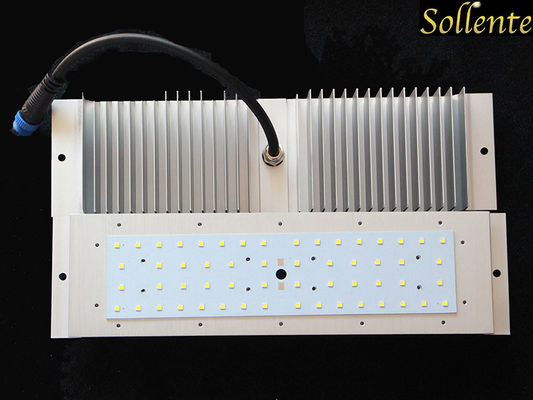

| Main parts | 56W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver |
| Lens Material | PC Optical |
| MOQ | 10pcs |
| Lens size | 256.6x78.6x7.1mm |
| PCB Size | 233x55x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit | 7 series 8 parallel , Or customized as client's request |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe, South America,North America, Asia |
140x70degree SMD Led Modules Lens Drawing:
140x70 degree 3030 SMD Led Modules Lens Distribution:
Features :
56W has a range of Street light and High bay light modules which have multiple lenses in a single array. Lens modules provide an easy and cost effective solution. All the Led modules are designed to allow modularization of light engines. They are also future-proof solutions allowing customers to easily adapt into latest generation of LEDs without compromising the design and performance of the luminaire.

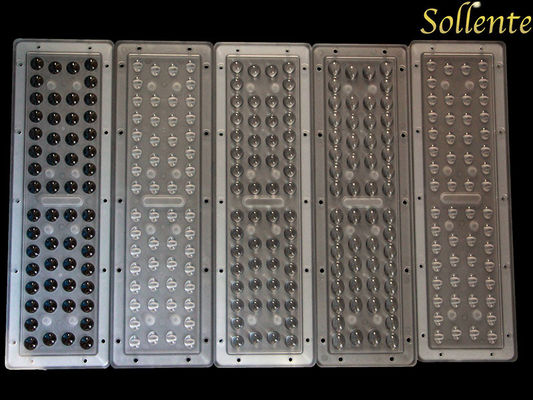

Related SMD 3030 Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
|
SOE-SSL56W30F
|
30° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W60F
|
60° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W90F
|
90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W30x70F
|
30x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W60x90F
|
60x90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W145x70F
|
145x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W155x80F
|
155x80°, Asymmetric 35° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W90x90F
|
90x90° | 250x74x8.2mm | 229x53x1.5mm |
|
SOE-SL56W145X75F
|
145X75° | 250x74x8.2mm | 229x53x1.5mm |
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
Shipping and delivery time:
| Delivery and Shipping | |
| Trade Term | EXW, FOB, CNF |
| Payment Term | TT, PayPal, Western Union |
| Lead Time | 3-7 working days for samples order, 7-14 working days for bulk order |
| Shipment Term | Sea, Air, Express DHL, Fedex, UPS, TNT |
Application:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
