Product Details:
Payment & Shipping Terms:
|

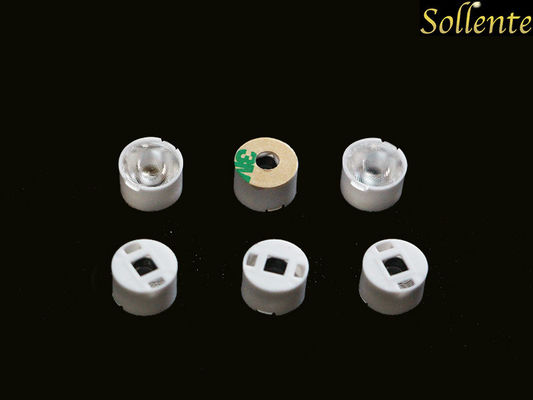

Product Name: | 15 Degree Narrow Beam PMMA LED Collimator Lens , LED Torch Lenses | Lens Size: | Diameter 10.8mm |
---|---|---|---|
PCB Size: | Diameter 20mm | Beam Angle: | 15°, 30°, 45°, 60°, 90° |
Match Led: | Cree XTE XPE XPG, SMD 3535 | Material: | Optical Grade PC |
Efficiency: | 91% | Led Voltage: | 3-3.6V/W |
High Light: | led light fittings,led light lens |
1. Dimension: Diameter 10.7mm, height 6.8mm
2. Beam Angle: 15°, 30°, 45°, 60°, 90°
3. Match Led: Cree XTE XPE XPG, SMD 3535
4. Materials : Optical Grade PC
5. Accessories: Led lens, Sticker, PCB soldering Led
6. Efficiency: >91%
Specifications:
Product Name | 15 Degree Narrow beam PMMA LED Collimator lens , LED Torch lenses |
Model No | SOE-11MM-30 |
Main parts | 1W Lens + MCPCB mounting leds |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | Diameter 10.7mm, height 6.8mm |
PCB Size | Diameter 20mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit |
1 in series |
LED details | 3-3.6V/W, 350mA, 150lm/w |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
Led optical Lens Drawing:
Delivery and Shipping:
Trade Term | EXW , FOB , CNF |
Payment Term | TT , PayPal , Western Union |
Lead Time | 3-7 working days for samples order, 7-14 working days for bulk order |
Shipment Term |
Sea, Air, Express DHL, Fedex, UPS, TNT |
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Features :
Product combined with Geometric Surface Design,High light efficiency; On the basic character of 3030series light, show the application of theCombination of optical and construction.
Related SMD 3030 Led Street Light Modules:
Model No. | Lens angle | Lens size(Diameter*Height) | PCB size(Diameter*Thickness) |
SOE-11MM-15
|
15° | 10.7x6.8mm | 20X1.5mm |
SOE-11MM-30
|
30° | 10.7x6.8mm | 20X1.5mm |
SOE-11MM-45
|
45° | 10.7x6.8mm | 20X1.5mm |
SOE-11MM-60
|
60° | 10.7x6.8mm | 20X1.5mm |
SOE-11MM-90
|
90° | 10.7x6.8mm | 20X1.5mm |
Competitive Advantage:
1). Using high quality imported 3535 LED CREE XTE, XPE, XPG
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
