Product Details:
|
| Product Name: | 20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens | Lens Size: | Diameter 20mm |
|---|---|---|---|
| PCB Size: | Diameter 20mm | Beam Angle: | 15°, 25°, 40°, 60°, 80° |
| Match Led: | Cree XTE XPE XPG, SMD 3535, SMD 3030, SMD 2525 | Material: | Optical Grade PMMA |
| Efficiency: | 91% | Led Voltage: | 3-3.6V/W |
| High Light: | led light fittings,led light lens |
||
1. Dimension: Lens Diameter 20mm , holder 22mm
2. Beam Angle: 15°, 25°, 40°, 60°, 80°
3. Match Led: Cree XTE XPE XPG , SMD 3535, SMD 3030, SMD 2525
4. Materials : Optical Grade PC
5. Accessories: Led lens , PCB soldering Led
6. Efficiency: >91%
20mm Led Lens Outline:
Specifications:
| Product Name | 20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens |
| Model No | SOE-XP2015 |
| Main parts | 1W Lens + MCPCB mounting leds |
| Lens Material | PMMA Optical |
| MOQ | 1pcs |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
1 in series |
| LED details | 3-3.6V/W, 350mA, 150lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America , Asia |

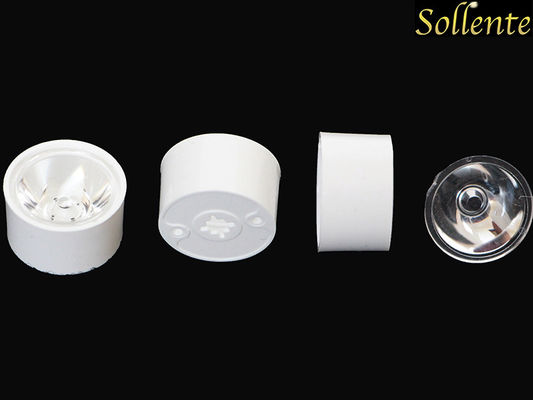

Lens surface could be Frosted, Bead, or Transparent
Related Led Optics Lens:
| Model No. | Lens angle | Lens size(Diameter*Height) | PCB size(Diameter*Thickness) |
|
SOE-XP2015 |
15° | 22x12.91mm | 20X1.5mm |
|
SOE-XP2025
|
25° | 22x12.91mm | 20X1.5mm |
|
SOE-XP2040
|
40° | 22x12.91mm | 20X1.5mm |
|
SOE-XP2060
|
60° | 22x12.91mm | |
|
SOE-XP2080
|
80° | 22x12.91mm |
Competitive Advantage:
Following trend of energy-saving and environmental development, we have technical co-operation with local college and international famous brand in the area of Led light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination.
Application:Various types of Indoor Lighting. Led Flood Light, Led Wall washer Light and so on.
LED Applications
A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.
Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.
You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18 working days.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
