High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip

High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip
High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip

Large Image :  High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-4IN1-60
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

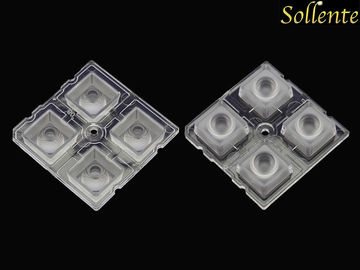

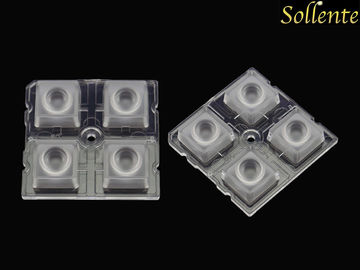

High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip

Description
Product Name: 60 Degree High Power LED Lens , Led Light Lens For 1-3 Watt Cree Led Chip Lens Size: L50*W50*H8.5mm
PCB Size: L65xW50xH1.5mm Beam Angle: 30, 60 Degree
Match Led: 3030 SMD , Cree XTE, 3535 SMD Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 4 IN Series
Led Voltage: 6-6.8V/W, 2.8-3.4V/W
High Light:

led light module

,

led light lens



High Efficiency 60 Degree High Power Led Optics Lenses 1-3 Watt Cree Led Chip





Quick Details:

1. Dimension:     L50*W50*m8.5m

2. Beam Angle:   30°, 60°

3. Match Led:     SMD 3030 , CREE XTE, SMD 3535

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens

6. Efficiency:       >91%









Related SMD 3030 Led Street Light Modules:

Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-4IN1-30



30° 50X50X8.9mm 65X50X1.5mm

SOE-4IN1-60



60° 50X50X8.9mm 65X50X1.5mm

SOE-4IN1-90



90° 50X50X8.9mm 65X50X1.5mm









Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available









Application:

It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 24w, 36w, 48w, 60w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on.







Specifications:



Product Name 60 Degree high power LED Lens , Led light lens for 1-3 Watt Cree Led Chip
Model No SOE-4IN1-60
Main parts 4W Lens + MCPCB mounting leds
Lens Material PC Optical
MOQ 1pcs
Lens size 50x50x8.5mm
PCB Size 65x50x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

4 in series

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia









 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT







 Storage: Do not store in dusty place, or expose under corrosive environment

 Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
 Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
