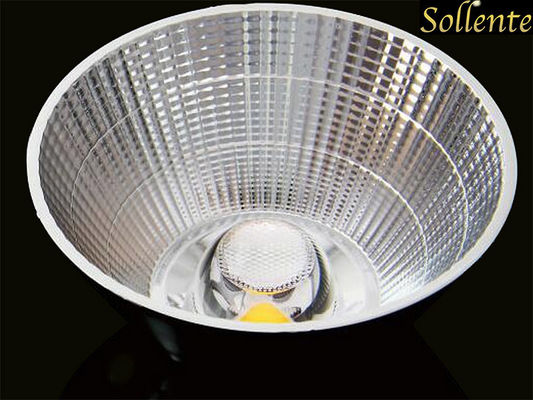

Product Details:
|
| Product Name: | Optical Designs Aluminized 23 Degree COB Led Reflector For Led Track Lighting | Diameter: | 92mm |
|---|---|---|---|
| Height: | 40mm | Beam Angle: | 13, 23 Degree |
| Match Led: | Cree, Edison, Citizen, Sharp | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +60℃ | Efficiency: | 91% |
| Accessories: | COB Holder, Light Pipe, COB Led | ||
| High Light: | led light reflector,led cob reflector |
||
Quick Detail of COB Led Reflector:
1. Dimension: Φ92*40*28mm (diameter*height)
2. Beam Angle: 13, 23 degree
3. Match Led: EDISON HM05 HM30 Cree CXA 2520
4. Materials : Optical Grade PC
5. Accessories: COB holder, Light Pipe, COB Led
6. Efficiency: 91%
COB Led Reflector March Led:
| CREE | CITIZEN | SHARP | LUMILEDS | XXXX | EDISON |
| CXA 18XX | CLL 020 | 2024 | CXM-14 | 1202 | HM05 |
| CXA 25XX | CLL 030 | 1215 | 1205 | HM30 | |
| HM16 |
Related COB Led Reflector:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-COB-R45-10/23/38 |
10° 23° 38° | D45mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 |
|
SOE-COB-R50-10/23/38 |
10° 23° 38° | D50mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 |
|
SOE-COB-R63-10/23/38 |
10° 23° 38° | D63mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R69-10/23/38 |
10° 23° 38° | D69mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R75-10/23/38 |
10° 23° 38° | D75mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R92-10/23/38 |
10° 23° 38° | D92mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 |
|
SOE-COB-R108-10/23/38 |
10° 23° 38° | D108mm*H38mm | CXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14 |
Product Application of COB Led Reflector:
Led Track Lighting
Led Torch
Led Flshlight
Led Spot Light
R&D
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
