Product Details:
|
| Product Name: | Borosilicate 80 Degree COB Led Lens For CXA 3070 Led Flood Light | Diameter: | 100mm |
|---|---|---|---|
| Height: | 39mm | Beam Angle: | 80 Degree |
| Match Led: | 50-300W | Material: | Optical Grade High Borosilicate Glass |
| Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |

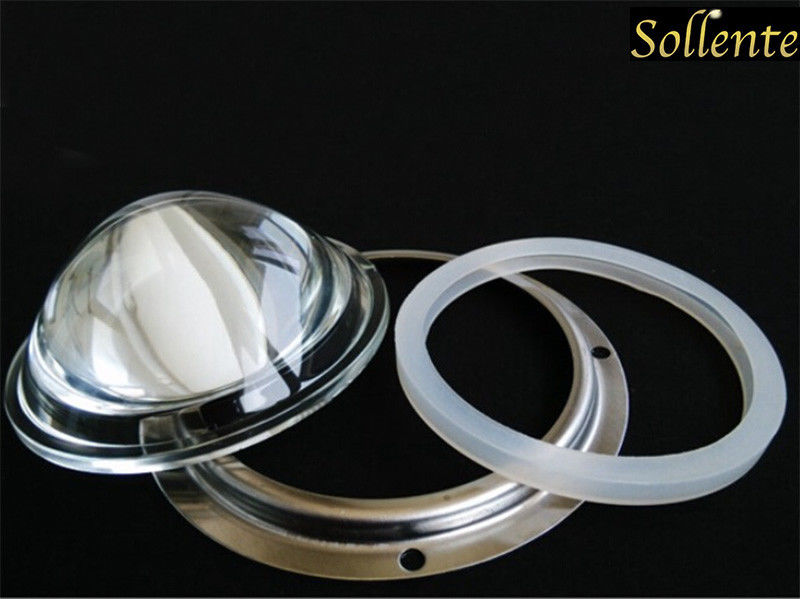

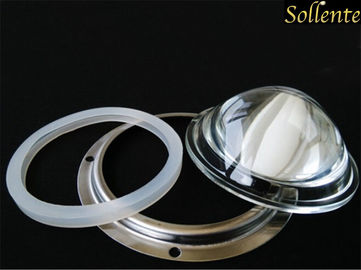

| Accessories: | Lens, Gasket, AL Holder | TYPE: | ANTI GLARIE |
| High Light: | led light lens,led cob lens |
||
Quick Detail:
1. Dimension: Dia 100mm Height 39mm
2. Beam Angle: 80degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 94mm
7. Application: Industail Light , Led high bay light , Flood light , Flashing light , Led Spot Light
Specifications:
| Product Name |
Borosilicate 80 degree COB Led Lens for CXA 3070 Led Flood Light |
| Model No | SOE-HB100-80 |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | Diameter 100mm height 39mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
100mm 80degree Led Glass Lens Drawing:
Led Glass Lens Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
|
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
|
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
|
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
|
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
|
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
|
SOE-HB78-60
|
60° | D78mm*H40mm | 50-200W |
|
SOE-HB78-90
|
90° | D78mm*H35mm | 50-200W |
|
SOE-HB78-120
|
120° | D78mm*H26mm | 50-200W |
|
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
|
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
|
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
|
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
|
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
Our Service Concept:
Fast Response,
Professional Service,
Top-quality.
1. Your inquiry will be replied by professional sales in 8 hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Distributorship is offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. 2 years warranty.
6. Provide you the lowest freight cost and the fastest service.
7. Professional engineers to design and develop new led street light components according to your requirements.
8. we can design the color boxes for you when you have larger quantity.
9. we can use your logo and label on products.
