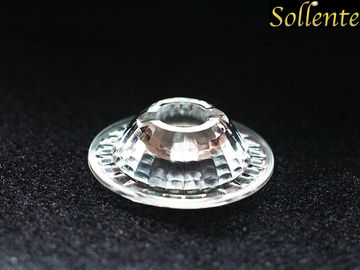

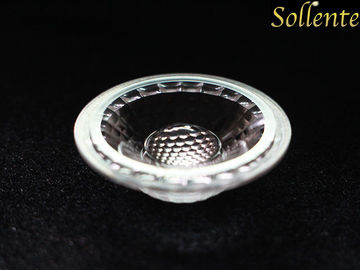

Product Details:
|
| Product Name: | COB Led Lens | Diameter: | 42mm |
|---|---|---|---|
| Height: | 12.5mm | Beam Angle: | 38 Degree |
| Match Led: | 5W-10W COB Led | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +135℃ | Efficiency: | 91% |
| High Light: | led light lens,Glass Led lens,38 Degree LED Optical Lens |
||
Quick Detail:
1. Dimension: Dia 42mm Height 12.5mm
2. Beam Angle: 38degree
3. Match Led: 5-10w COB Led
4. Materials : Optical Grade PMMA
5. Accessories: COB holder
6. Efficiency: 93%
Related COB REFLECTOR:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-COB-R45-10/23/38
|
10° 23° 38° | D45mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 PHILIOPS1202 |
|
SOE-COB-R50-10/23/38
|
10° 23° 38° | D50mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 PHILIOPS1202 |
|
SOE-COB-R63-10/23/38
|
10° 23° 38° | D63mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-R69-10/23/38
|
10° 23° 38° | D69mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-R75-10/23/38
|
10° 23° 38° | D75mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-R83-10/23/38
|
10° 23° 38° | D83mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-R92-10/23/38
|
10° 23° 38° | D92mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-R108-10/23/38
|
10° 23° 38° | D108mm*H38mm | CXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14 PHILIOPS1208 |
Product Application:
Led Down Light
Led Ceiling Light
Led Spot Light
Our Service Concept:
Fast Response,
Professional Service,
Top-quality.
1. Your inquiry will be replied by professional sales in 8 hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Distributorship is offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. 2 years warranty.
6. Provide you the lowest freight cost and the fastest service.
7. Professional engineers to design and develop new led street light components according to your requirements.
8. we can design the color boxes for you when you have larger quantity.
9. we can use your logo and label on products.
