Product Details:
|

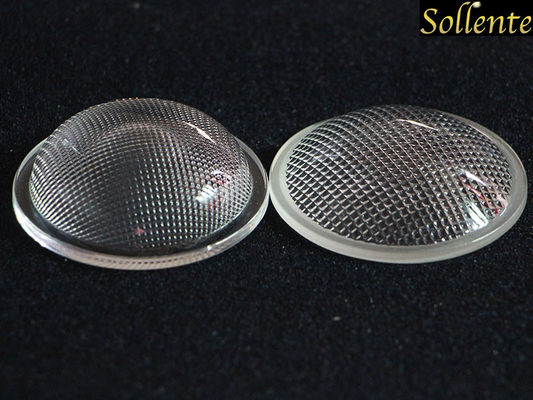

| Product Name: | 50w COB Led Lens With 6000K Pure White Bridgelux Led 45mil Chip | Diameter: | 67mm |
|---|---|---|---|
| Height: | 21mm | Beam Angle: | 120 Degree |
| Match Led: | 10-100W | Material: | Optical Grade High Borosilicate Glass |
| Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |
| Accessories: | Lens, Gasket, Metal Holder | TYPE: | ANTI GLARIE |
| High Light: | Glass Led lens,led cob lens |
||
Quick Detail:
1. Dimension: Dia 66mm Height 22mm
2. Beam Angle: 120degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 53mm
7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light
Specifications:
| Product Name |
50w COB Led Lens With 6000K Pure White Bridgelux Led 45mil Chip |
| Model No | SOE-HB67-120A |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver MeanWell |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | 67mm, height 21mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:
Led Glass Lens Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
|
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
|
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
|
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
|
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
|
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
|
SOE-HB78-60A
|
60° | D78mm*H40mm | 50-200W |
|
SOE-HB78-90A
|
90° | D78mm*H35mm | 50-200W |
|
SOE-HB78-120A
|
120° | D78mm*H26mm | 50-200W |
|
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
|
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
|
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
|
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
|
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
Our team
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
