Product Details:
|

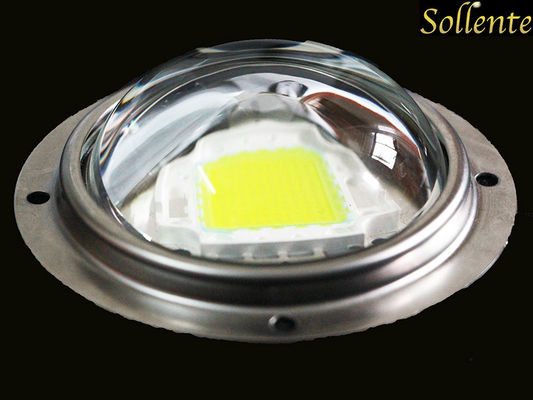

| Product Name: | 120 Degree LED High Bay Light Fixtures With 14000 Lumens Bridgelux Chip | Diameter: | 78mm |
|---|---|---|---|
| Height: | 27.5mm | Beam Angle: | 120 Degree |
| Match Led: | 10-100W | Material: | Optical Grade High Borosilicate Glass |
| Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |
| Accessories: | Lens, Gasket, Metal Holder | ||
| High Light: | Industrial LED Light Fixtures,high bay lighting fixtures |
||
Quick Detail:
1. Dimension: Dia 78mm Height 27.5mm
2. Beam Angle: 120degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 53mm
7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light
Specifications:
| Product Name |
120 degree LED High Bay Light Fixtures with 14000 Lumens Bridgelux Chip |
| Model No | SOE-HB78-120 |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | Diameter 78mm, Height 27.5mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:
Led Glass Lens Distribution:
Contact Details:
|
Attn :
|
Alina Xiang |
|
Tel :
|
+86 13825255182 |
|
Email :
|
alina@streetlightmodule.com |
|
Email :
|
alina.x@yahoo.com |
|
Skype :
|
alinaxiang33 |
|
WhatApp :
|
+86 13825255182 |
|
QQ :
|
4521182 |
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
|
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
|
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
|
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
|
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
|
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
|
SOE-HB78-60
|
60° | D78mm*H40mm | 50-200W |
|
SOE-HB78-90
|
90° | D78mm*H35mm | 50-200W |
|
SOE-HB78-120
|
120° | D78mm*H26mm | 50-200W |
|
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
|
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
|
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
|
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
|
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
