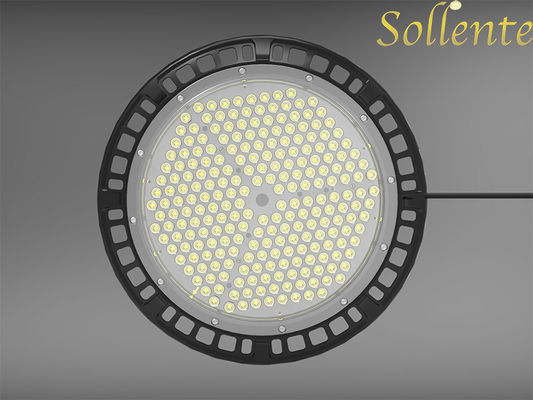

Product Details:
|
| Product Name: | 200W Led High Bay Light Component With 234 In 1 Led Lens 90 Degree | Lens Size: | Dia263.9mm X H9.38mm |
|---|---|---|---|
| PCB Size: | Diameter 234mm | Beam Angle: | 90 Degree |
| Match Led: | SMD3030 , OSRAM S5, Lumileds 2D | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 6 Series 39 Parallels |
| Led Voltage: | 6 V/W | Heat Sink: | Dia 336 X H52.7mm |
| High Light: | 200W Led High Bay Light Component,90 Degree Led High Bay Light Component,SMD3030 Led High Bay Lens |
||
| Product Name | Model | Beam Angle | Dimension |
| 234 in 1 lens | SOE-HB234-90 | 90° | Φ263.9 x H9.38mm |
| 234 in 1 PCB | SOE-HB234-90 | Φ234 x H1.6mm | |
| Gasket | SOE-HB234-90 | Φ243.39 x H3.4mm | |
| Heatsink | SOE-HB234-90 | Φ336 x H52.7mm |
High bay and low bay lighting Application:
Industrial factory,
warehouse,
stadium,
hypermarket,
supermarket
and other indoor environments.
Product combined with Geometric Surface Design,High light efficiency;
On the basic character of 3030 series light, show the application of
the Combination of optical and construction.
234 in 1 Lens Drawing:
PCB Drawing for 234 in 1 Lens:
PCB
LED type: 3030 SMD
LED quantity minimum: 234
LED quantity maximum: 234
Assembled MCPCB: yes
PCB shape: round
PCB size: ø 234 mm
MCPCB thickness: 1,6
PCB material: Aluminium
Distribution:
Heatsink Drawing: Diamter 336mm
Advantages
Excellent Design. Adopt high brightness LEDs, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours. Impact and shock resistance, no UV and IR radiation. It is also reliable when working in low voltage.
Using aluminum housing and strong anti-corrosion, waterproof, dust-proof. With oxidation treatment on the surface of the radiator, it is durable and impact-resistant. The integrative structure simplify the spot wiring, it's more easy for installation and maintenance. Sealing parts are made of silicon rubber, which keeps oil-resistant, acid-resisting, alkali-resisting and heat-resistant.
1. Top grade waterproof rank : IP65
2. Long lifespan > 50,000 hrs
3. Low voltage, safe for human
4. Green Light, protect for environment
5. Low power consumption , high efficiency
6. Excellent heat output
Industry Leading heat dissipation design
Adopt AL6063 aluminum housing, IP65. Simple but original design, which ensures excellent ventilating effect, corrosion and wind resistance.
Unique elegant appearance
A new design concept about a conventional breakthrough in housing, for offering highly integration solving solution.
Led waterproof driver/ Mean Well driver:
Optional brands of Led driver, detached design of power supply. The isolating switching power supply, low voltage output, low harmonics, no strobe, high efficiency, ling life-span.
Packing and Shipping:
1. Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7. Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: Exported package, also can be customized according to customer requirements.
