Product Details:
|
| Product Name: | 30W Led Street Light Retrofit Kits Assembled MCPCB For Toll Station Led Lamp | Lens Size: | L256.6*W78.6*9.1mm |
|---|---|---|---|
| PCB Size: | L228*W53*H1.5mm | Beam Angle: | 78x132 Degree |
| Match Led: | 3535 SMD, Cree XTE XPE | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 10 Series 3 Parallels |
| Led Voltage: | 2.9-3.4V | Lumen: | 160 Lm/W |
| High Light: | High Bay LED Retrofit Kits,pole light led retrofit kits |
||
1. Dimension: L256*W78*7.1mm
2. Beam Angle: 78x132 degree
3. Match Led: SMD 3535 , Cree XTE , Rebel-E , Nichia 219A
4. Materials : Optical Grade PC, Aluminm

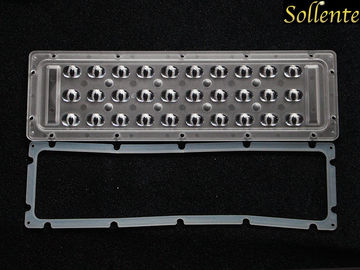

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name |
30W Led Street Light Retrofit Kits Assembled MCPCB For Toll Station Led Lamp |
| Model No | SOE-SL30W-CR78x132 |
| Main parts | 30W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | L256.6*W78.6*9.1mm |
| PCB Size | 233x55x1.5mm , PCB could design as clients reuqest |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
10 series 3 parallel |
| Cree XTE | 2.9-3.4V , 148-156 lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America |
30w Led street Light Retrofit Kits Lens Drawing:
78x132 degree 30W Led Street Light Lens Distribution:
Features :
Related High power Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
|
SOE-SL30W-LM87X134
|
87X134° | 250x74x9.6mm | 228x53x1.5mm |
|
SOE-SL30W-LM90X90
|
90x90° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-CR120
|
120° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-LM90
|
90° | 250x74x9.6mm | 229x53x1.5mm |
Competitive Advantage:
1). Using high quality imported 3535 SMD LED , Cree XTE , XPG , XPE
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
Delivery and Shipping:
| Trade Term | EXW , FOB , CNF |
| Payment Term | TT , PayPal , Western Union |
| Lead Time |
3-7 working days for samples order, 7-14 working days for bulk order |
|
Shipment Term |
Sea, Air, Express DHL, Fedex, UPS, TNT |
