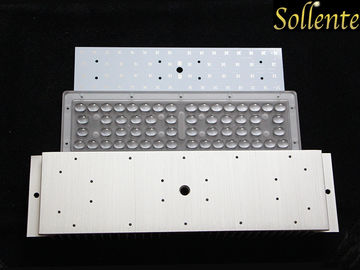

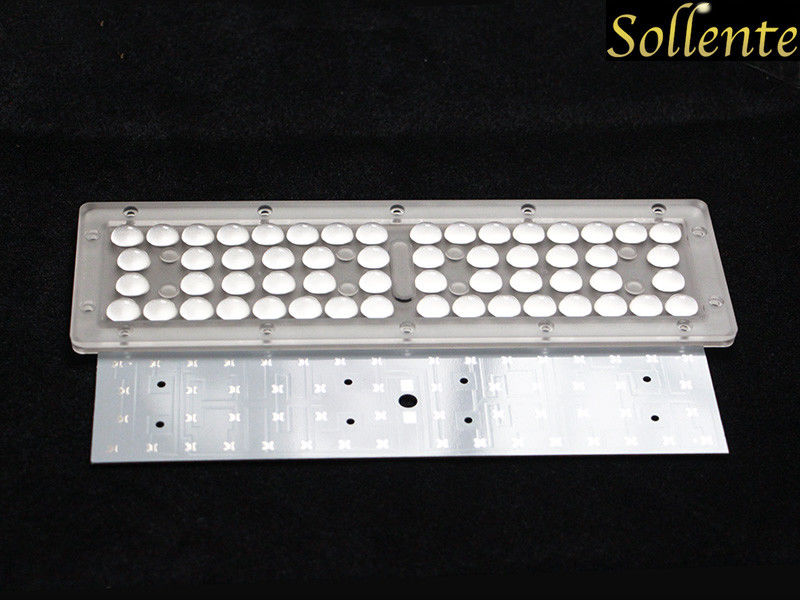

Product Details:
|
| Product Name: | 3030 SMD Led Street Light Modules With PCB Soldering Lumileds Led | Lens Dimension: | L256.6*W78.6*7.1mm |
|---|---|---|---|
| Heat Sink: | L310*W80*H43mm | Beam Angle: | 30x70 Degree |
| Match Led: | SMD 3030, S5, Lumileds 2D | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +100℃ | Efficiency: | 91% |
| PCB Circuit: | 7 Series 8 Parallels | Led Driver: | AC 110-2265V |
| High Light: | led smd module,Osram LED Module |
||
1. Dimension: L256*W78*7.1mm
2. Beam Angle: 30x70 degree
3. Match Led: SMD 3030 OSRAM,
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name | 3030 SMD Led street light Modules with PCB soldering Lumileds Led |
| Model No | SOE-SL56W-30x70F |
| Main parts | 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable |
| Lens Material | PC Optical |
| MOQ | 10pcs |
| Lens size | 256.6x78.6x7.1mm |
| PCB Size | 233x55x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit | 7 series 8 parallel |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe, South America,North America, Asia |
3030 SMD Led Street light Modules Drawing:
3030 SMD Led Street Light Lens Distribution:
Features :
Related SMD 3030 Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
|
SOE-SSL56W30F
|
30° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W60F
|
60° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W90F
|
90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W30x70F
|
30x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W60x90F
|
60x90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W145x70F
|
145x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W155x80F
|
155x80°, Asymmetric 35° | 256.6x78.6x7.1mm | 233x55x1.5mm |
|
SOE-SL56W90x90F
|
90x90° | 250x74x8.2mm | 229x53x1.5mm |
|
SOE-SL56W145X75F
|
145X75° | 250x74x8.2mm | 229x53x1.5mm |
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
Shipping and delivery time:
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB|EXW|CIF|CFR |
| Sample availability | YES, 3 days |
| Delivery time | 5-6 working days |
Application:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
