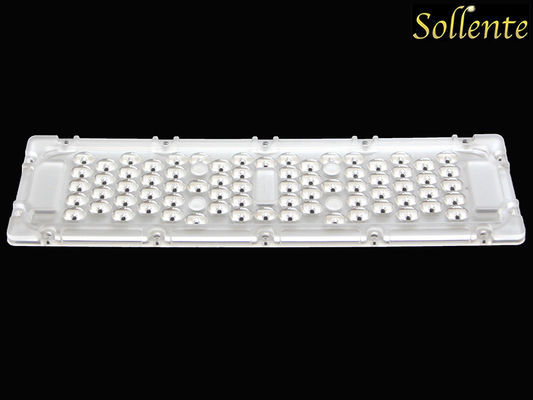

Product Details:
|
| Product Name: | SMD LED Modules PCB Soldering 72W 3030 Leds Application For Street Lamp | Lens Size: | 250x74x6.15mm |
|---|---|---|---|
| PCB Size: | L226*W58*T1.5mm | Beam Angle: | 80x150 Degree |
| Match Led: | 3030 SMD , OSRAM S5, Lumileds 2D | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 8 Series 9 Parallels |
| Led Voltage: | Or 3-3.2V/W | ||
| High Light: | led smd module 72W 3030,Cree LED Module,72W 3030 Cree LED Module |
||
1. Lens Dimension: L250xW74xH6.15mm
2. Beam Angle: 80x150 degree
3. Match Led: SMD 3030 , OSRAM S5 ,
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name | SMD LED Modules PCB Soldering 72W 3030 Leds Application for Street Lamp |
| Model No | SOE-SL72W-80X150 |
| Main parts | 72 Led Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | 250x74x6.15mm |
| PCB Size | 226x57.9x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
8 series 9 parallel |
| LED details | 6-6.8V 150mA 120-130lm/w Or 3-3.2V 300mA 120-130lm |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America , Asia |
Led Street Light Lens Drawing:
Led Street Light Lens Distribution:
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Other SMD 3030 Led lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
|
SOE-SL64W-30 |
30° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-60 |
60° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-90 |
90° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-90x120 |
90x120° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-80x150 |
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-S80x150 |
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
Delivery and Shipping:
| Trade Term | EXW , FOB , CNF |
| Payment Term | TT , PayPal , Western Union |
| Lead Time |
3-7 working days for samples order, 7-14 working days for bulk order |
|
Shipment Term |
Sea, Air, Express DHL, Fedex, UPS, TNT |
