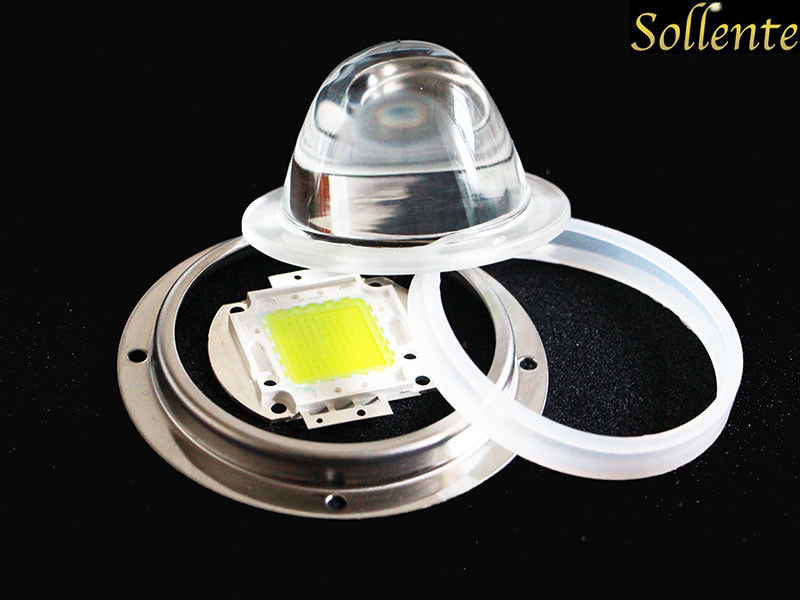

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket
45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket 45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket

Large Image :  45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-HB78-45
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket

Description
Product Name: 45 Degree COB LED Light Modules , 50w Emitting Diodes For Floodlight Diameter: 78mm
Height: 44mm Beam Angle: 45 Degree
Match Led: 10-100W Material: Optical Grade High Borosilicate Glass
Working Temperature: -50 To 55 °C Transmittance: 91.6%
Accessories: Lens, Gasket, Metal Holder
High Light:

LED COB Module

,

LED Light Module

45 degree COB LED Light Modules , 50w Emitting Diodes For Floodlight





Quick Detail:

1. Dimension:    Dia 78mm Height 44mm

2. Beam Angle:  45 degree

3. Match Led:    10-100w LEDs

4. Materials :     Borosilicate glass

5. Accessories:  Metal holder, silicon gasket

6. Chips Package size < 50mm

7. Application:   Led high bay light, Flood light, Flashing light, Led Spot Light

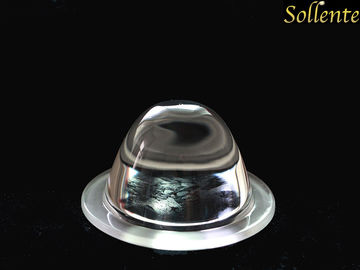

78mm Led Glass Lens Pictures:

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket 0











Specifications:

Product Name 45 degree COB LED Light Modules , 50w Emitting Diodes For Floodlight
Model No SOE-HB78-45
Main parts Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver
Lens Material Borosilicate Glass
MOQ 10pcs
Lens size 78mm
Sample 3 days
Delivery 7-9 days
Certificate ROHS, SGS
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market

Europe, South America,North America, Asia











Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1









Led Glass Lens Drawing:

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket 1









Led Glass Lens Distribution:

45 Degree Floodlight White COB LED Modules With Metal Holder , Silicon Gasket 2









Contact Details:

Attn :



Alina Xiang

Tel :



+86 13825255182

Email :



alina@sollente.com

Email :



alina.x@yahoo.com

Skype :



alinaxiang33

WhatApp :



+86 13825255182

QQ :



45211682









Related Glass lens:



Model No. Lens angle Lens Dimensions Match Led

SOE-HB50-40



40° D50mm*H28mm 10-100W

SOE-HB50-90



90° D50mm*H24mm 10-100W

SOE-HB60-35



35° D66mm*H48mm 10-100W

SOE-HB60-60



60° D66mm*H34mm 10-100W

SOE-HB60-90



90° D66mm*H17mm 10-100W

SOE-HB78-45



45° D78mm*H44mm 10-100W

SOE-HB78-60



60° D78mm*H40mm 50-200W

SOE-HB78-90



90° D78mm*H35mm 50-200W

SOE-HB78-120



120° D78mm*H26mm 50-200W

SOE-HB100-60



60° D100mm*H39mm 50-200W

SOE-HB100-90



90° D100mm*H35mm 50-200W

SOE-HB100-120



120° D100mm*H33mm 50-200W

SOE-HB109-120



120° D109mm*H33mm 50-200W

SOE-HB130-110



110° D130mm*H35mm 50-300W









Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability






Led glass lens Applications:

It is used
for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
