Product Details:
|

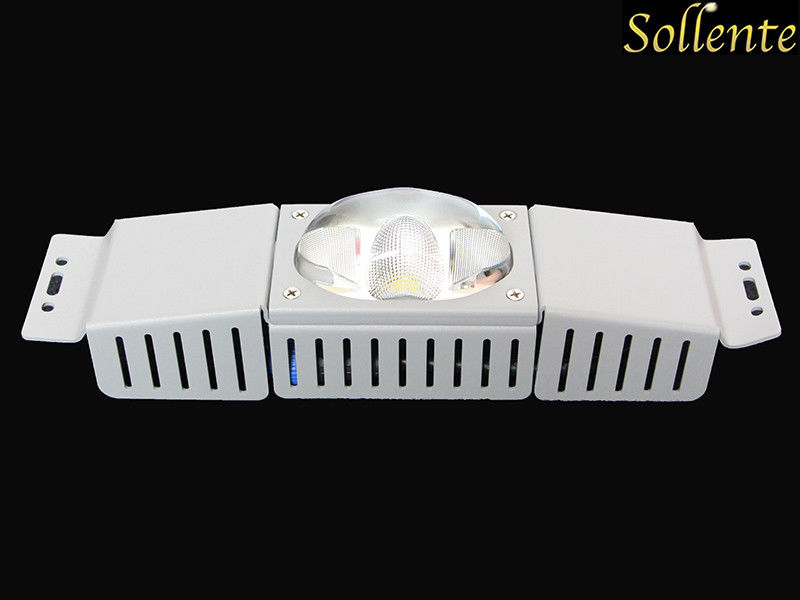

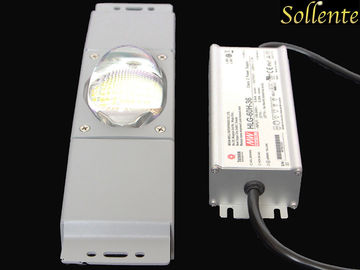

| Product Name: | Anti-glare 30w COB Led Road Light Module With Waterproof Meanwell Driver | Dimension: | L300*W70*76mm |
|---|---|---|---|
| Input Voltage: | DC36-45V | Max Current: | 1.2A |
| Match Led: | 3030, Lumileds, Osram | Material: | Borosilicate Glass |
| Working Temperature: | -35℃ +55℃ | Efficiency: | 90% |
| Beam Angle: | 150x75 Degree | IP Grade: | IP67 |
| Warranty: | 3 Years | ||
| High Light: | LED lamp Module,LED COB Module,LED COB Module 30w |
||
LED Modules:
Different led modules meet comprehensive needs.
LED Chips:
Chip-Scale-Package LED, small and thin design. high density multi light sources for high brightness. Low thermal resistance and good thermal connection to PCB and heat sink. Wafer warping control, phosphor thickness precise control and no bonding wore design.
Optical Lens:
Superior optical borosilicate glass lens, High light transmittance, IP 66 with silicone gasket.
Heat Sink:
Integrated heat sink, no waterproof or heat requirement on streetlight case.
Radiation cooling coating is propitious to emit heat.
Stafe-of-art design ensure good heat management while kiiping light-weight.
Connector:
IP 67 cable connector for wiring, Easy cable for assembling

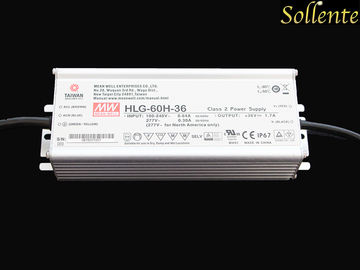

LED Driver:
Meanwell drivers optional.
Long life span, reliable with low failure rate.
1. Dimension: L300*W70*76mm
2. Beam Angle: 155X75 degree
3. Match Led: 3030, Lumileds, Osram
4. Materials : Optical Grade Glass, Aluminm
5. Accessories: Full set
6. Efficiency: >91%
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light
Fast time to market thanks to easy design-in
Very effective thermal management thanks to uniform heat dissipation
Product features
IP67 protected module
Long lifetime : up to 50,000 h
COB Led Modules Drawing:
COB Led Modules Distribution:
Competitive Advantage:
1). Using high quality Osram S5 3030 Led
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
The design of Street Light Module joins LED and IP67 water/dust proof. It takes advantage of energy saving and oval view angle, and adapts to different requirement of street lighting, like 30w, 60w, 90w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket, Apply to street light and solar street light, Tunnel Light, Gas station Light
Application: Tunnel, gas station, toll station, trestle, underground parking etc. High light efficiency, long life time, excellent color rendering index, stable light, no glare, energy-saving, wide range of color temperature, smooth visual feel, stable light output, etc.
