Product Details:
Payment & Shipping Terms:
|
Product Name: | Led Glass Lens | Diameter: | 107mm |
---|---|---|---|
Height: | 33mm | Beam Angle: | 135x65 Degree |
Match Led: | 30-200W | Material: | Optical Grade High Borosilicate Glass |
Working Temperature: | -50 To 60 °C | Transmittance: | 91.6% |

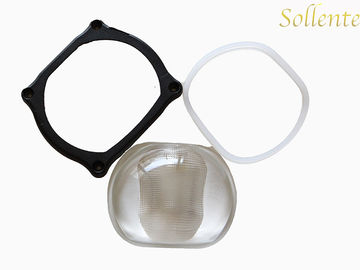

Accessories: | Lens, Gasket , Metal Holder , Reflector , COB Led | Len Type: | Anti Glare |
High Light: | glass light lenses,led optical lens |
Quick Detail:
1. Dimension: Dia 107mm Height 33mm
2. Beam Angle: 135x65 degree, Asymmetric
3. Match Led: 50-200w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder,silicon gasket
6. Chips Package size < 41mm
Specifications:
Product Name |
Led Glass lens |
Model No | SOE-SL110-27A |

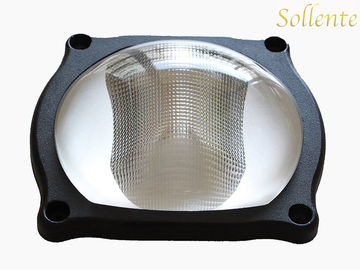

Main parts | Optical glass Lens+silicone gasket+metal holder+Reflector+Multichip LED+Driver |
Lens Material | Borosilicate Glass |
MOQ | 10pcs |
Lens size | 107x87mm |
Sample | 3 days |
Delivery | 7-9 days |
Certificate | ROHS, SGS |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:
Distribution:
Related Glass lens:
Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-SL107-A4
|
160x70° | D107mm*H31mm | 50-200W |
SOE-SL107-A3
|
135x65° | D107mm*H32mm | 50-200W |
SOE-SL107-A2
|
140x70° | D107mm*H33mm | 50-200W |
SOE-SL107-A
|
140x70° | D107mm*H32mm | 50-200W |
SOE-SL106-27A
|
155x80° | D107mm*H31mm | 50-200W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Application:
It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
Material Details:
Optical Grade High Borosilicate Glass, This material increases light transmittance through the lens compared to plastics and lower-quality glass.
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
