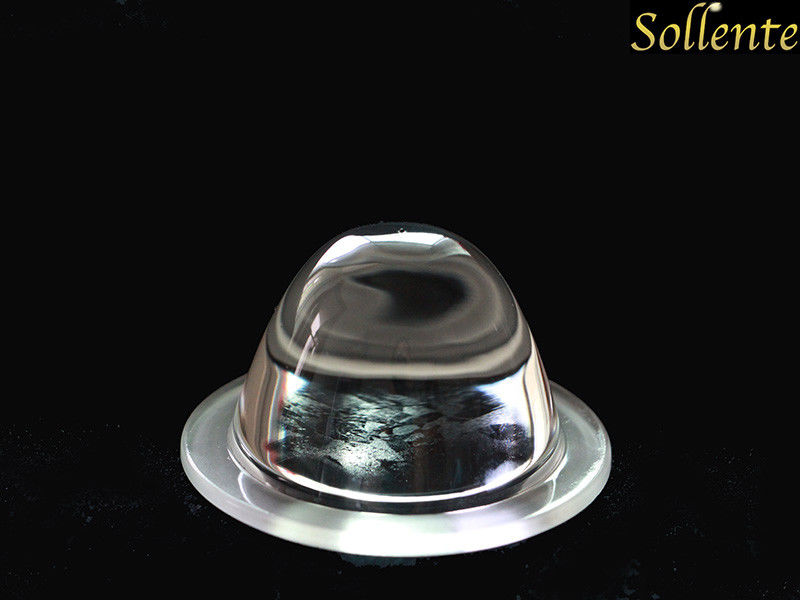

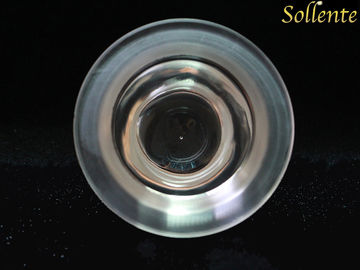

Product Details:
|
Product Name: | New Type 45 Degree Glass Optical LED Lens With High Transmittance | Diameter: | 78mm |
---|---|---|---|
Height: | 44mm | Beam Angle: | 45 Degree |
Match Led: | 10-100W | Material: | Optical Grade High Borosilicate Glass |
Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |
Accessories: | Lens, Gasket, Metal Holder | ||
High Light: | cree Led lens,led optical lens |
Quick Detail:
1. Dimension: Dia 78mm Height 44mm
2. Beam Angle: 45 degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 50mm
7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light
Specifications:
Product Name |
New Type 45 Degree Glass Optical LED Lens with High Transmittance |
Model No | SOE-HB78-45 |
Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver |
Lens Material | Borosilicate Glass |
MOQ | 10pcs |
Lens size | Diameter 78mm, Height 44mm |
Sample | 3 days |
Delivery | 7-9 days |
Certificate | ROHS, SGS |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:
Led Glass Lens Distribution:
Contact Details:
Attn :
|
Alina Xiang |
Tel :
|
+86 13825255182 |
Email :
|
alina@sollente.com |
Email :
|
alina.x@yahoo.com |
Skype :
|
alinaxiang33 |
WhatApp :
|
+86 13825255182 |
QQ :
|
45211682 |
Related Glass lens:
Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
SOE-HB78-60
|
60° | D78mm*H40mm | 50-200W |
SOE-HB78-90
|
90° | D78mm*H35mm | 50-200W |
SOE-HB78-120
|
120° | D78mm*H26mm | 50-200W |
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
Packing and Shipping:
1. Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7. Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: EXported package, also can be customized according to customer requirements.
