Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens

Certification
China Sollente Opto-Electronic Technology Co., Ltd certification
China Sollente Opto-Electronic Technology Co., Ltd certification
Customer Reviews
Since the beginning of our company's establishment, we have always received your led street light modules, thanks to your quality and professionalism.

—— Mr. KULIQI

Hope we will expand our business by continuing a cooperation like you, Thank you Alina for the help you gave me every time I need.

—— Mr. VALON

a very big thanks to you & your company for the impressively good service & high quality of your goods that you have supplied us, on time, good price.

—— Mr. RB van der Merwe

I'm Online Chat Now

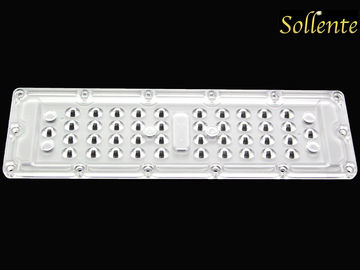

Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens

Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens
Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens

Large Image :  Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens

Product Details:
Place of Origin: China
Brand Name: Sollente
Certification: CE, Rohs
Model Number: SOE-SL42W-80x150
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens

Description
Product Name: Shoebox Led Street Light Module With 42 Watts Plastic SMD 3030 Led Lens Lens Size: 236x70x6.9mm
PCB Size: L220*W54*T1.5mm Beam Angle: 80x150 Degree
Match Led: 3030 SMD , OSRAM S5, Lumileds 2D Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 7 Series 6 Parallels
Led Voltage: 6-6.8V/W, 2.8-3.4V/W Heat Sink: L300*W70
High Light:

Outdoor LED Module

,

led street light module

Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens



Quick Details:

1. Dimension:     L236xW70xH6.9mm

2. Beam Angle:   80x150 degree

3. Match Led:     SMD 3030 , OSRAM S5 ,

4. Materials :      Optical Grade PC, Aluminm

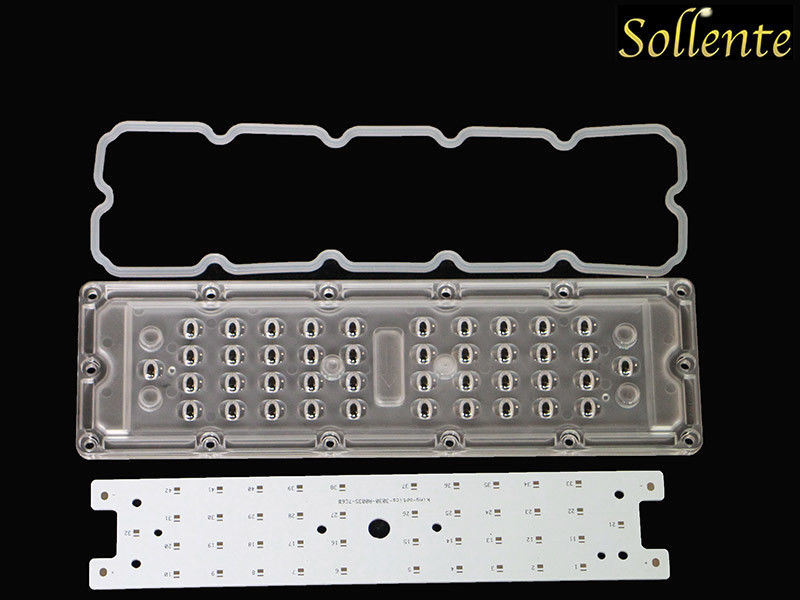

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:



Product Name Shoebox Led Street Light module With 42 Watts Plastic SMD 3030 Led Lens
Model No SOE-SL42W-80X150
Main parts 42W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 236x70x6.9mm
PCB Size 220x54x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 6 parallel

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia











Led Street Light Lens Drawing:



Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens 0











80x150 degree Led Street Light Lens Distribution:

Shoebox LED Street Light Module With 42 Watts Plastic SMD 3030 Led Lens 1



 Storage: Do not store in dusty place, or expose under corrosive environment

 Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
 Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.







Features :

  1.  This SKD 64W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 80x150°, 90x120°, 90°, 60° , 30° etc.











Related SMD 3030 Led Street Light Modules:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*T)

SOE-SL64W-30



30° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-60



60° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-90



90° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-90x120



90x120° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-80x150



80x150° 236x70x6.9mm L220*W54*T1.5mm

SOE-SL64W-S80x150



80x150° 236x70x6.9mm L220*W54*T1.5mm



SOE-SL42W-80X150

80x150° 236x70x6.9mm L220*W54*T1.5mm













Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available









Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on






 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT
