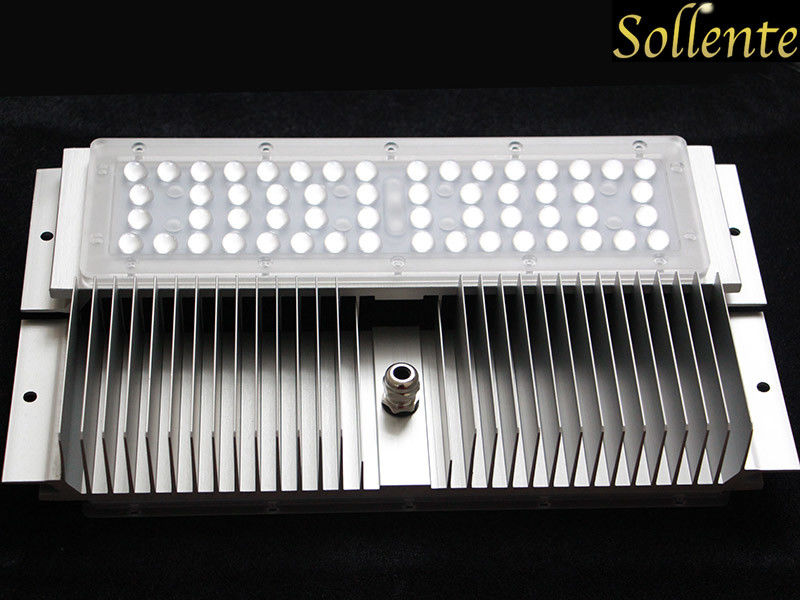

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules
30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules 30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules

Large Image :  30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56W-30F
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules

Description
Product Name: 30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules Lens Size: L256.6*W78.6*7.1mm
Heat Sink: L310*W80*H43mm Beam Angle: 30 Degree
Match Led: 3030 SMD , OSRAM S5, Lumileds 2D Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 7 Series 8 Parallels
Led Voltage: 6-6.8V
High Light:

Outdoor LED Module

,

led street light module

,

OSRAM S5 LED Lighting Modules

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules





Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   30 degree

3. Match Led:     SMD 3030 , OSRAM S5 ,

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%





Specifications:

Product Name 30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules
Model No SOE-SL56W-30F
Main parts 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 8 parallel

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia

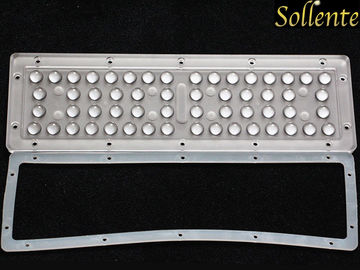

Pictures:

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules 0







Led Street Light Lens Drawing:

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules 1









Heat Sink Drawing:

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules 2







30 degree Led Street Light Lens Distribution:

30 Degree 3030 SMD LED Street Light Module , OSRAM S5 LED Lighting Modules 3







Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 155x80°, 145x75°,60x90°, 90° , 30x70° etc.





Contact Details:

Attn :  Alina Xiang
Tel :  +86 13825255182
Email :  alina@sollente.com
Email :  alina.x@yahoo.com
Skype :  alinaxiang33
WhatApp :  +86 13825255182
QQ :  45211682





Related SMD 3030 Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm

SOE-SL56W145X75F



145X75° 250x74x8.2mm 229x53x1.5mm





Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.









Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on





 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT
