SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED
SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED

Large Image :  SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL56W-90F
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: Led Street Light Modules Lens Dimension: L256.6*W78.6*7.1mm
Heat Sink: L310*W80*H43mm Beam Angle: 90 Degree
Match Led: SMD 3030 , OSRAM S5, Lumileds 2D Material: Optical Grade PC
Working Temperature: -35℃ +100℃ Efficiency: 91%
PCB Circuit: 7 Series 8 Parallels
High Light:

Outdoor LED Module

,

led street light module

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED





Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   90 degree

3. Match Led:     SMD 3030 , OSRAM S5 ,

4. Materials :      Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:       >91%







Specifications:

Product Name SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED
Model No SOE-SL56W-90F
Main parts 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable
Lens Material PC Optical
MOQ 10pcs
Lens size 256.6x78.6x7.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

7 series 8 parallel

LED details 6-6.8V , 150mA , 120-130lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe, South America,North America, Asia

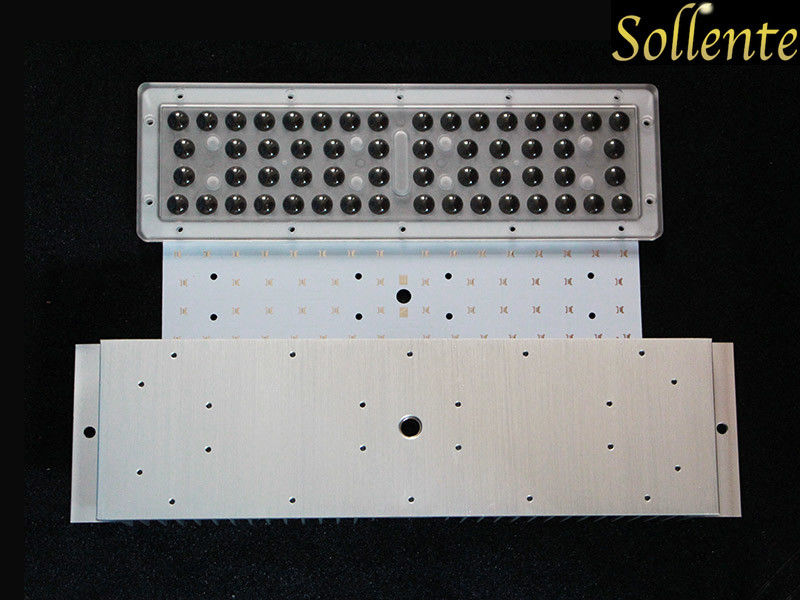

Led Street light Modules Pictures:



SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED 0





Led Street Light Lens Drawing:

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED 1







PCB drawing:

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED 2

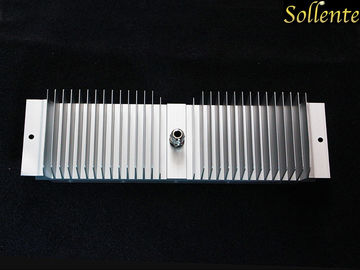

Heat Sink Drawing:

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED 3











90 degree Led Street Light Lens Distribution:

SMD LED 3030 Street Light Module With 90 Degree Lens PCB Soldering LED 4









Features :

  1.  This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 30°, 145x75°,60x90°, 90°etc.







Related SMD 3030 Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SSL56W30F



30° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60F



60° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90F



90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W30x70F



30x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W60x90F



60x90° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W145x70F



145x70° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W155x80F



155x80°, Asymmetric 35° 256.6x78.6x7.1mm 233x55x1.5mm

SOE-SL56W90x90F



90x90° 250x74x8.2mm 229x53x1.5mm

SOE-SL56W145X75F



145X75° 250x74x8.2mm 229x53x1.5mm





Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.









Application:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
