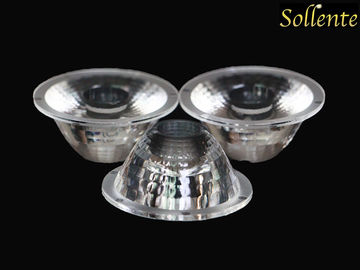

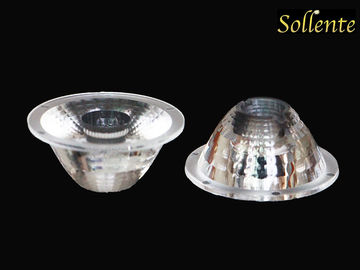

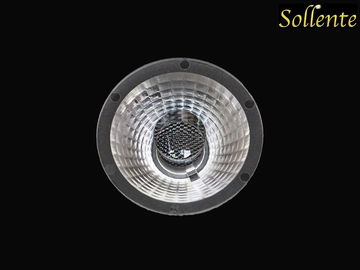

41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens

41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens
41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens 41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens 41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens

Large Image :  41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-COB41-H18-15
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: 41mm PMMA High Reflective Efficiency COB Led Lens For Ceiling Led Light Diameter: 41mm
Height: 18mm Beam Angle: 15, 30, 60 Degree
Match Led: COB Led Material: Optical Grade PMMA
Working Temperature: -35℃ +135℃ Efficiency: Up 91%
High Light:

led light lens

,

Glass Led lens

41mm PMMA High reflective efficiency COB Led Lens for Ceiling Led Light









Quick Detail:

1. Dimension:      Dia 41mm Height 18 mm

2. Beam Angle:   15, 30, 60 degree

3. Match Led:      5-10w COB Led

4. Materials :       Optical Grade PMMA

5. Accessories:    /

6. Efficiency:        93%

7. MODEL:          SOE-COB41-H18-15









COB Lens Drawing: SOE-COB41-H18-15



41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens 0













15 Degree COB Lens Distribution:



41mm PMMA 5w - 10w COB Led Light Lens ,15 / 30 / 60 Degree Ceiling Light Lens 1













Related COB Led Lens:



Model No. Lens angle Lens Dimensions Lens bottom hole diameter

SOE-COB32-H10.5-38



38° D32mm*H10.5mm 11mm

SOE-COB33.8-H17-38/60



38° 60° D33.8mm*H17mm 10mm

SOE-COB41-H13-15/30/60



15° 30° 60° D41mm*H13mm 8.7mm

SOE-COB41-H18-15/30/60



15° 30° 60° D41mm*H18mm 11.8mm

SOE-COB43.6-H22-38



38° D43.6mm*H22mm 14mm









PMMA



PMMA is a strong and lightweight material.

PMMA transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces due to its refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV) light at wavelengths below about 300 nm (similar to ordinary window glass).



Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.

PMMA is an economical alternative to polycarbonate (PC) when extreme strength is not necessary. Additionally, PMMA does not contain the potentially harmful bisphenol-A subunits found in polycarbonate. It is often preferred because of its moderate properties, easy handling and processing, and low cost.





Packing and Shipping:

1.Express: Shipped by FEDEX/DHL/UPS/TNT

2. Air cargo: It takes about one week to arrive the destination.

3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.

4. Payment terms: TT, PayPal, Western Union

5. Lead time : Within 3-10 working days.

6. Bulk order Lead time :Within 5-10 working days.

7.Shipping port: Shenzhen/Yantian/Shekou

8. Packaging: Exported package, also can be customized according to customer requirements.









Packing and Shipping:

1.Express: DHL, FEDEX, UPS, TNT...

2. Air cargo: It takes about one week to arrive the destination.

3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.

4. Payment terms: PayPal, Western Union, TT

5. Samples Lead time : Within 3-5 working days.

6. Bulk order Lead time :Within 10-18 working days.

7.Shipping port: Shenzhen/Yantian/Shekou

8. Packaging: Exported package, also can be customized according to customer requirements.
