Product Details:
Payment & Shipping Terms:
|

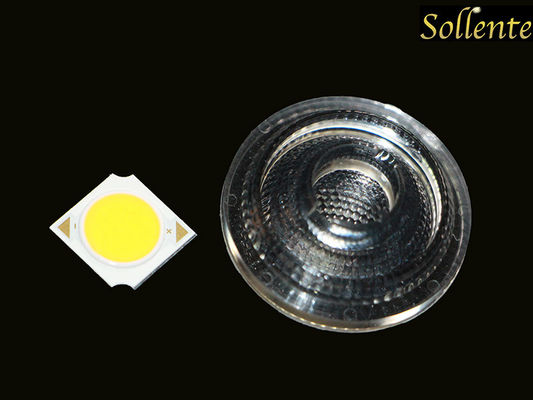

Product Name: | Custom 93% Transmittance Clear COB PMMA Led Condenser Lens For Led Spot Light | Diameter: | 32 Mm |
---|---|---|---|
Height: | 10.5 Mm | Beam Angle: | 38 Degree |
Match Led: | COB Led | Material: | Optical Grade PMMA |
Working Temperature: | -35℃ +135℃ | Efficiency: | Up 91% |
High Light: | led light lens,Glass Led lens |
Quick Detail:
1. Dimension: Dia 32mm Height 10.5 mm
2. Beam Angle: 38 degree
3. Match Led: 5-10w COB Led
4. Materials : Optical Grade PMMA
5. Accessories: /
6. Efficiency: 93%
Related COB Led Lens:
Model No. | Lens angle | Lens Dimensions | Lens bottom hole diameter |
SOE-COB32-H10.5-38
|
38° | D32mm*H10.5mm | 11mm |
SOE-COB33.8-H17-38/60
|
38° 60° | D33.8mm*H17mm | 10mm |
SOE-COB41-H13-15/30/60
|
15° 30° 60° | D41mm*H13mm | 8.7mm |
SOE-COB41-H18-15/30/60
|
15° 30° 60° | D41mm*H18mm | 11.8mm |
SOE-COB43.6-H22-38
|
38° | D43.6mm*H22mm | 14mm |
PMMA
PMMA is a strong and lightweight material.
PMMA transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces due to its refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV) light at wavelengths below about 300 nm (similar to ordinary window glass).
Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.
PMMA is an economical alternative to polycarbonate (PC) when extreme strength is not necessary. Additionally, PMMA does not contain the potentially harmful bisphenol-A subunits found in polycarbonate. It is often preferred because of its moderate properties, easy handling and processing, and low cost.
Packing and Shipping:
1.Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7.Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: Exported package, also can be customized according to customer requirements.
LED Applications
A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.
Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.
You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.
