Product Details:
|
Product Name: | 50 Watts DC24V Square Street Light Led Module | Lens Size: | 130x130x6.9mm |
---|---|---|---|
PCB Size: | L116*W116*T1.5mm | Beam Angle: | 80x150 Degree |
Match Led: | 3030 SMD , OSRAM S5 , Luminleds 2D | Material: | Optical Grade PC |
Efficiency: | 91% | PCB Circuit: | 8 Series 8 Parallels |
Led Voltage: | 3-3.4V | ||
High Light: | Outdoor LED Module,led modular street light |
Specifications:
Product Name | 50 Watts DC24V Square Street Light Led Module With Luminleds 2D 3030 Led |
Model No | SOE-SL64S-80x150 |

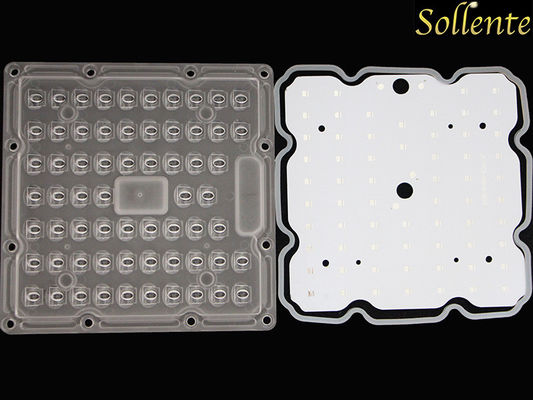

Main parts | 64 Leds Lens+ Silicone gasket + AL PCB mounting leds, Meanwell Led driver is available |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | 130x130x6.9mm |
PCB Size | 116*116*1.5mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit |
8 series 8 parallel |
LED details | 3-3.4V |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
Led Street Light Lens Drawing:
80x150 degree Led Street Light Lens Distribution:
PCB drawing:
Features :
Other SMD 3030 Led Lens:
Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
SOE-SL64W-30
|
30° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-60
|
60° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-90
|
90° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-90x120
|
90x120° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-80x150
|
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-S80x150
|
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and oval view angle, and adapts to different requirement of street lighting. This street Light Module can be used by replacing light source and bracket, Apply to street light and solar street light, Tunnel Light, Gas station Light, high way led lamp , square lamp , road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
Our Services
1. Your inquiry will be replied by professional sales in 8 hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Distributorship is offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. 2 years warranty.
6. Provide you the lowest freight cost and the fastest service.
7. Professional engineers to design and develop new led street light components according to your requirements.
8. we can design the color boxes for you when you have larger quantity.
9. we can use your logo and label on products.
