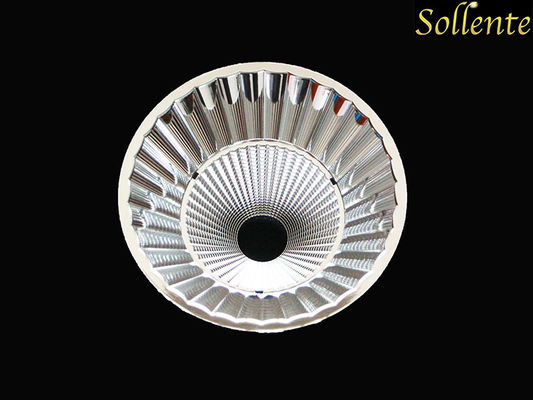

Product Details:
|
| Product Name: | Led Reflector | Diameter: | 110mm |
|---|---|---|---|
| Height: | 58mm | Beam Angle: | 45 Degree |
| Match Led: | CXA 1520 1816 CLL020 CLL030 | Material: | Optical Grade PC |
| Working Temperature: | -35℃ +135℃ | Efficiency: | 91% |
| Accessories: | COB Holder | ||
| High Light: | led light reflector,led cob reflector |
||
Quick Detail:
• High Efficiency
• Optimized Uniformity
• With holder, lens
• Commercial Lighting
• Optical PC material
• Dia 110mm H58mm
Drawing:
Matched Led:
| CREE | CITIZEN | SHARP | HONOURTEK | EDISON | |
| CXA 15XX | CLL020 | 1205 | 2024 | 0920 | HM05 |
| CXA 18XX | CLL030 | 1208 | 1215 | 1220 | HM09 |
| HM30 |
Product Application:
Led Track Lighting
Led Bean Container Light
Led Spot Light
Advantage
Following trend of energy-saving and environmental development, we have technical co-operation with local college and international famous brand in the area of Led light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination.
Use Imported raw materials
Vacuum plating
High reflectivity
Anti-UV varnish
Anti-corrosion
Anti-oxidation
Anti- glare
Related Led Reflector:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-COB-D45-10/23/38
|
10° 23° 38° | D45mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 PHILIOPS1202 |
|
SOE-COB-D50-10/23/38
|
10° 23° 38° | D50mm*H30mm | CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13 PHILIOPS1202 |
|
SOE-COB-D63-10/23/38
|
10° 23° 38° | D63mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-D69-10/23/38
|
10° 23° 38° | D69mm*H40mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-D75-10/23/38
|
10° 23° 38° | D75mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-D83-10/23/38
|
10° 23° 38° | D83mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-D92-10/23/38
|
10° 23° 38° | D92mm*H45mm | CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14 PHILIOPS1202 |
|
SOE-COB-D108-10/23/38
|
10° 23° 38° | D108mm*H38mm | CXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14 PHILIOPS1208 |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 4-6 working days, mass production time needs 10-18 working days.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Competitive Advantage:
Following trend of energy-saving and environmental development, we have technical co-operation with local college and international famous brand in the area of Led light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination.
