Product Details:
Payment & Shipping Terms:
|
| Product Name: | 90 Degree Array Led Lens For SMD 5050 Adjustable Led Industrial Light | Lens Size: | 236x70x8.3mm |
|---|---|---|---|
| PCB Size: | L217.7*W43.5*T1.5mm | Beam Angle: | 90 Degree |
| Match Led: | 5050 SMD | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 2 Series 14 Parallels |
| Led Voltage: | 3-3.4V | ||
| High Light: | cree led array,multi lens array |
||
1. Dimension: 236x70x8.3mm
2. Beam Angle: 90 degree
3. Match Led: SMD 5050,
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:

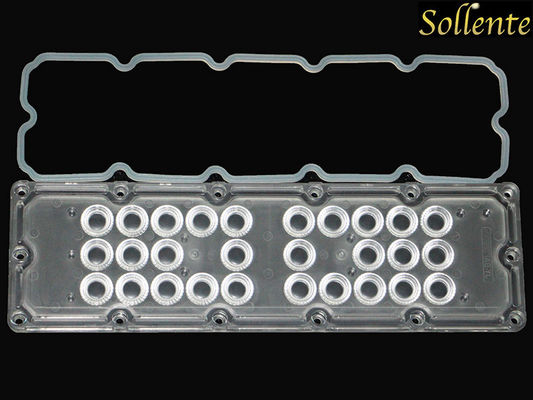

| Product Name | 90 Degree Array Led Lens For SMD 5050 Adjustable Led Industrial Light |
| Model No | SOE-SL28L-90 |
| Main parts | 28 Leds Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | 236x70x8.3mm |
| PCB Size | 217.7*43.5*1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
2 series 14 parallel |
| LED details | 3-3.4V |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America , Asia |
Led Street Light Lens 90 degree Drawing:
90 degree Led Street Light Lens Distribution:
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Features :
Related SMD 5050 Led Street Light Modules:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
|
SOE-SL28L-60
|
60° | 236x70x8.3mm | 217.7*43.5*1.5mm |
|
SOE-SL28L-90
|
90° | 236x70x8.3mm | 217.7*43.5*1.5mm |
|
SOE-SL28L-80x150
|
80x150° | 236x70x8.3mm | 217.7*43.5*1.5mm |
Competitive Advantage:
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light
Fast time to market thanks to easy design-in
Very effective thermal management thanks to uniform heat dissipation
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
