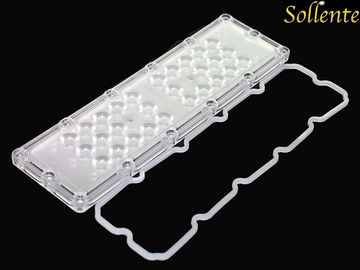

Product Details:
|
Product Name: | 28 Pieces SMD 5050 Led Lens Array 60 Degree For Led Street Light | Lens Size: | 236x70x8.3mm |
---|---|---|---|
PCB Size: | L217.7*W43.5*T1.5mm | Beam Angle: | 60 Degree |
Match Led: | 5050 SMD | Material: | Optical Grade PC |
Efficiency: | 91% | PCB Circuit: | 2 Series 14 Parallels |
Led Voltage: | 3-3.4V | ||
High Light: | cree led array,multi lens array |
1. Dimension: 236x70x8.3mm
2. Beam Angle: 60 degree
3. Match Led: SMD 5050,
4. Materials : Optical Grade PC, Aluminm

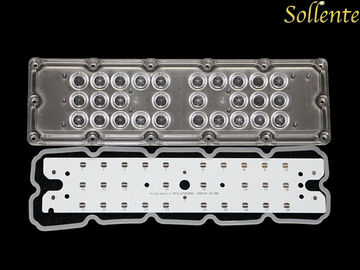

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
Product Name | 28 Pieces SMD 5050 Led Lens Array 60 Degree For Led Street Light |
Model No | SOE-SL28L-60 |
Main parts | 28 Leds Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | 236x70x8.3mm |
PCB Size | 217.7*43.5*1.5mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit |
2 series 14 parallel |
LED details | 3-3.4V |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
Related SMD 5050 Led Street Light Modules:
Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
SOE-SL28L-60
|
60° | 236x70x8.3mm | 217.7*43.5*1.5mm |
SOE-SL28L-90
|
90° | 236x70x8.3mm | 217.7*43.5*1.5mm |
SOE-SL28L-80x150
|
80x150° | 236x70x8.3mm | 217.7*43.5*1.5mm |
Competitive Advantage:
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light
Fast time to market thanks to easy design-in
Very effective thermal management thanks to uniform heat dissipation
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
Led Street Light Lens Drawing:
60 degree Led Street Light Lens Distribution:
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Features :
