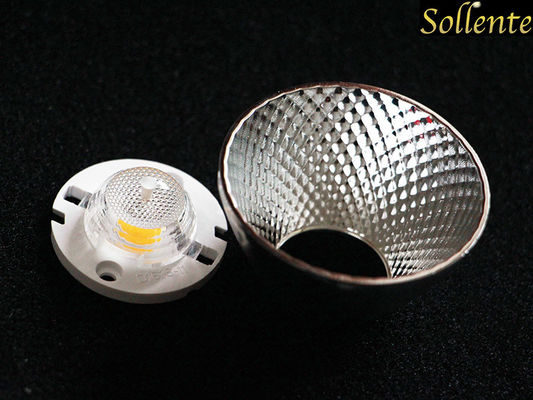

Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight

Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight
Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight

Large Image :  Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-COB-R50-10/23/38
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight

Description
Product Name: Plastic Led COB Reflectors Cup For VERO 13 GU10 Led Spotlight Diameter: 50mm
Height: 30mm Beam Angle: 10 23 38 Degree
Match Led: CREE, EDISON, CITIZEN, LUMILEDS Material: Optical Grade PC
Working Temperature: -35℃ +120℃ Efficiency: 91%
Accessories: COB Holder, Light Pipe, COB
High Light:

led light reflector

,

high bay light reflector

Plastic Led COB reflectors Cup for VERO 13 GU10 Led spotlight





Quick Detail:



1. Dimension:    Dia 50mm Height 30mm Bottom hole D21.5mm

2. Beam Angle:  10, 23, 38 degree

3. Match Led:     Cree, Edison, Citizen

4. Materials :      Optical Grade PC

5. Accessories:   COB holder, Light Pipe

6. Efficiency:     91%







Specification:



Type Optical reflector
Model Number SOE-COB-R50-10/23/38
Material PC
View Angle(Fwhm) 10° 23° 38°
Reflective Efficience 90%
Dimension Φ50*30*21.5mm (diameter*height)
Use Temperature -35℃~+120
Payment Term T/T, PayPal, Western Union
Packing Bubble bag and box
Port Shenzhen
Lead Time 3-7 days for sample order,7-15 days for mass produc
Application Spotlight, down light, track light ..ec









Matched Led:



CREE CITIZEN SHARP LUMILEDS xxxx EDISON
CXA 13XX CLL 010 1208 CXM-6 1202 HM05
CXA 15XX CLL 020 1215 CXM-7   HM09
      CXM-9   HM13









Related Led Reflector:



Model No. Lens angle Lens Dimensions Match Led

SOE-COB-R45-10/23/38



10° 23° 38° D45mm*H30mm CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13

SOE-COB-R50-10/23/38



10° 23° 38° D50mm*H30mm CXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13

SOE-COB-R63-10/23/38



10° 23° 38° D63mm*H40mm CXA 15xx 18xx 25xx  HM05 HM30 CLL020/030 CXM-7/9/14

SOE-COB-R69-10/23/38



10° 23° 38° D69mm*H40mm CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

SOE-COB-R75-10/23/38



10° 23° 38° D75mm*H45mm CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

SOE-COB-R83-10/23/38



10° 23° 38° D83mm*H45mm CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

SOE-COB-R92-10/23/38



10° 23° 38° D92mm*H45mm CXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

SOE-COB-R108-10/23/38



10° 23° 38° D108mm*H38mm CXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14







Product Application:
Led Track Lighting
Led Bean Container Light
Led Spot Light

Led Down Light


Plastic Cree LED Reflector Cup For VERO 13 GU10 LED Spotlight 0
