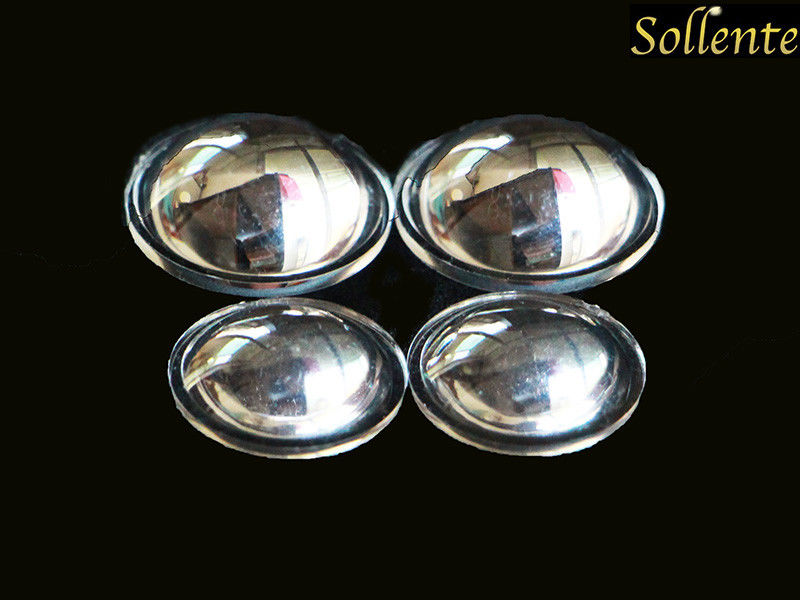

Product Details:
|
| Product Name: | 93% Optical Efficiency PMMA 40mm Plano-convex Optics For Led Project Light | Diameter: | 35mm |
|---|---|---|---|
| Height: | 8mm | Beam Angle: | 10-60 Degree |
| Match Led: | 1-10 W | Material: | PMMA |
| Working Temperature: | -10 To 45 °C | Transmittance: | Up To 92% |
| High Light: | acrylic plano convex lens,led reflector lens |
||
Quick Detail:
1. Dimension: Dia 35mm Height 8mm
2. Beam Angle: 10-60 degree
3. Match Led: 1-10w LEDs
4. Materials : PMMA
5. Transmits: up to 92%
Specification:
| Product Name |
93% Optical Efficiency PMMA 40mm Plano-convex optics For Led Project Light |
| Model No | SOE-PL35 |
| Main parts | LENS |
| Lens Material | Optical GRATE PMMA |
| MOQ | 10pcs |
| Lens size | Diameter 35mm |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe, South America, North America, Asia |
35mm Plano Convex Lens Drawing:

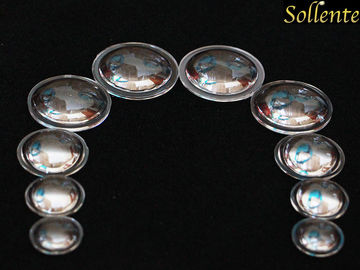

Related Plano Convex lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-PL20
|
60° | D20mm*H5.5mm | 1-3W |
|
SOE-PL23
|
60° | D23mm*H8mm | 1-3W |
|
SOE-PL29
|
60° | D29mm*H8.5mm | 1-3W |
|
SOE-PL35
|
60° | D35mm*H8mm | 1-10W |
|
SOE-PL38
|
60° | D38mm*H10mm | 1-10W |
|
SOE-PL48
|
60° | D40mm*H10mm | 1-10W |
Material:
Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.
Product Application:
Led Flash Light
Led Industrial Light
Led Flood Light
Led Spot Light
The design of Planocovex Lens for Led flashlight. Changing distance between Led source and lens to get different angle, Apply to Led Spotlight, Flashing light and so on.
