Product Details:
|

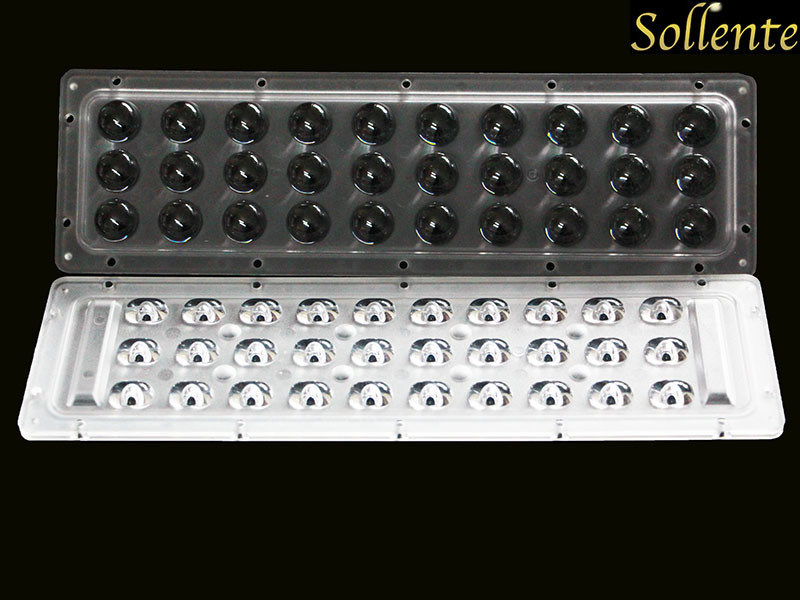

| Product Name: | 120 Degree Polycarbonate Array Led Lens For 30W High Mast Lighting | Lens Size: | L256.6*W78.6*9.1mm |
|---|---|---|---|
| PCB Size: | L228*W53*H1.5mm | Beam Angle: | 120 Degree |
| Match Led: | 3535 SMD, Cree XTE XPE | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 10 Series 3 Parallels |
| Led Voltage: | 2.9-3.4V | Lumen: | 160 Lm/W |
| LED Driver: | AC110-265V | ||
| High Light: | led light array,multi lens array |
||
Quick Details:
1. Dimension: L256*W78*7.1mm
2. Beam Angle: 120 degree
3. Match Led: SMD 3535 , Cree XTE , Rebel-E , Nichia 219A
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name |
120 Degree Polycarbonate Array Led Lens for 30W High Mast Lighting |
| Model No | SOE-SL30W-CR120 |
| Main parts | 30W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | L256.6*W78.6*9.1mm |
| PCB Size | 233x55x1.5mm , PCB could design as clients reuqest |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
10 series 3 parallel |
| Cree XTE | 2.9-3.4V , 160 lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America |
3x10 XTE LED Street Light Retrofit Kits lens Drawing:
Features :
Related High power Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
|
SOE-SL30W-LM87X134
|
87X134° | 250x74x9.6mm | 228x53x1.5mm |
|
SOE-SL30W-LM90X90
|
90x90° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-CR120
|
120° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-LM90
|
90° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-LM70x155
|
70x155° | 250x74x9.6mm | 229x53x1.5mm |
Competitive Advantage:
1). Using high quality imported 3535 SMD LED , Cree XTE , XPG , XPE
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
FAQ
Q1. Can I have a sample order for led street light modules?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18 working days.
Q3. Do you have any MOQ limit for led street light module order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led street light module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led street light module product?
A: Yes. We could print your LOGO on PCB. MOQ request 200 pcs. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system.
Secondly, during the guarantee period, we will send new one with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
