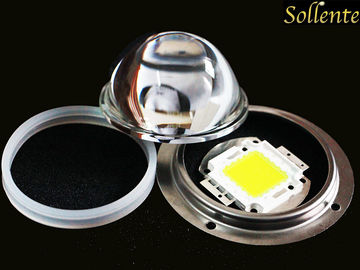

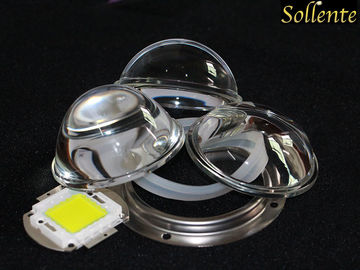

Product Details:
|
| Product Name: | 78mm Round Led Glass Lens For CXA 3070 , 60 Degree Led Projector Lens | Diameter: | 78mm |
|---|---|---|---|
| Height: | 40mm | Beam Angle: | 60 Degree |
| Match Led: | 10-100W | Material: | Optical Grade High Borosilicate Glass |
| Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |
| Accessories: | Lens, Gasket, Metal Holder | ||
| High Light: | glass light lenses,led optical lens |
||
Quick Detail:
1. Dimension: Dia 78mm Height 40mm
2. Beam Angle: 60degree
3. Match Led: 10-100w LED COB
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 53mm
7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light
Specifications:
|
Product Model
|
SOE-HB78-60 | Product specification | Φ78mm*H40mm |
|
Luminous angle
|
60° | Luminance distribution | 10~100W |
|
Material
|
High borosilicate3.3 | Transmittance | 92% |
|
Temperature resistance
|
-50℃~+520℃ | Tolerances | ±0.1mm |
|
Product applications
|
High Bay Lights, Flood Lights, Industrial Light, Factory Light | ||
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
60degree Led Glass Lens Drawing:
60degree Led Glass Lens Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
|
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
|
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
|
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
|
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
|
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
|
SOE-HB78-60
|
60° | D78mm*H40mm | 50-200W |
|
SOE-HB78-90
|
90° | D78mm*H35mm | 50-200W |
|
SOE-HB78-120
|
120° | D78mm*H26mm | 50-200W |
|
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
|
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
|
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
|
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
|
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
