Product Details:
|

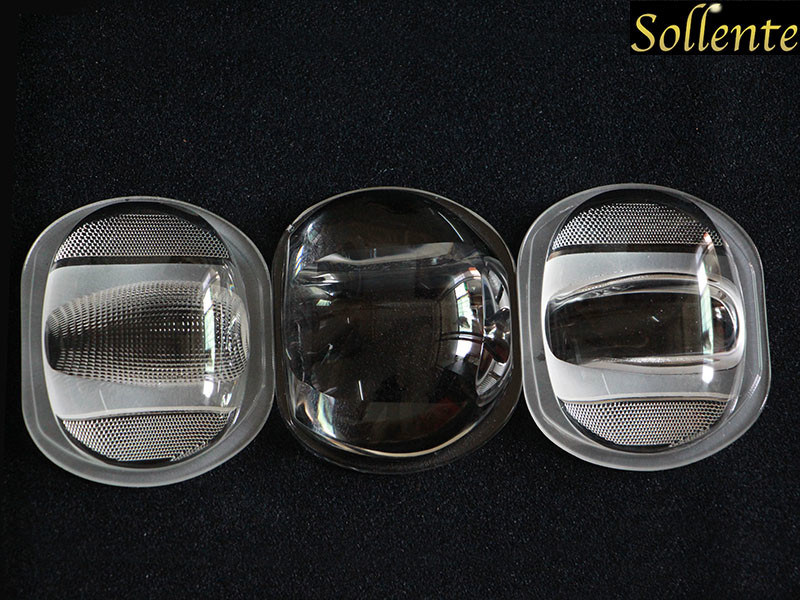

| Product Name: | 107MM 65X135DEGREE Glass Led Optical Lens For 30W-100W COB Street Light | Diameter: | 107x87mm |
|---|---|---|---|
| Height: | 33mm | Beam Angle: | 135x65 Degree |
| Match Led: | 50-200W | Material: | Optical Grade High Borosilicate Glass |
| Working Temperature: | -50 To 60 °C | Transmittance: | 91.6% |
| Accessories: | Lens, Gasket , Metal Holder , Reflector , COB Led | ||
| Highlight: | glass light lenses,cree Led lens |
||
Quick Detail:
1. Dimension: Dia 107x87mm Height 33mm
2. Beam Angle: 135x65 degree
3. Match Led: 50-200w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder,silicon gasket
6. Chips Package size < 65*51mm
Specifications:
| Product Name |
107MM 65X135DEGREE Glass led optical lens for 30W-100W COB street light |
| Model No | SOE-SL107-87 |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Reflector+Multichip LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | 107x87mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market |
Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:
Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-SL107-A4-2 |
160x70° | D107mm*H31mm | 50-200W |
|
SOE-SL107-A3
|
135x65° | D107mm*H32mm | 50-200W |
|
SOE-SL107-A4 |
160x70° | D107mm*H31mm | 50-200W |
|
SOE-SL107-A2 |
140x70° | D107mm*H33mm | 50-200W |
|
SOE-SL107-A |
140x70° | D107mm*H32mm | 50-200W |
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and oval view angle, and adapts to different requirement of street lighting, like 30w, 60w, 90w, 120w by changing COB Leds. This COB Led Module can be used by replacing light source and bracket, Apply to street light and solar street light, Tunnel Light, Gas station Light
