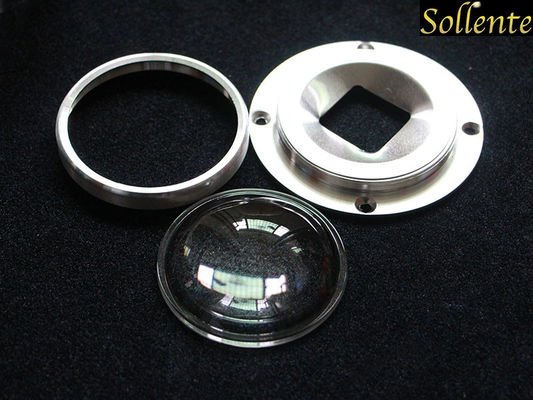

Product Details:
|
| Product Name: | Round 30w Led Glass Lens Work For COB Led CXA1816 High Bay Light | Diameter: | 67mm |
|---|---|---|---|
| Height: | 21mm | Beam Angle: | 120 Degree |
| Match Led: | 10-100W | Material: | Glass |
| Working Temperature: | -50 To 55 °C | Transmittance: | 91.6% |
| Accessories: | Lens, Gasket, Metal Holder | ||
| High Light: | glass light lenses,cree Led lens |
||
Quick Detail:
1. Dimension: Dia 67mm Height 21mm
2. Beam Angle: 120 degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: AL Ring, silicon gasket
6. Chips Package size < 50mm
7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light
Specifications:
| Product Name |
Round 30w Led Glass lens Work for COB Led CXA1816 High Bay Light |
| Model No | SOE-HB67-Z120 |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | 66mm height 23mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market |
Europe, South America,North America, Asia |
30W Led Glass Lens Drawing:
Contact Details:
|
Attn :
|
Alina Xiang |
|
Tel :
|
+86 13825255182 |
|
Email :
|
alina@sollente.com |
|
Email :
|
alina.x@yahoo.com |
|
Skype :
|
alinaxiang33 |
|
WhatApp :
|
+86 13825255182 |
|
QQ :
|
45211682 |
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
|
SOE-HB50-40
|
40° | D50mm*H28mm | 10-100W |
|
SOE-HB50-90
|
90° | D50mm*H24mm | 10-100W |
|
SOE-HB60-35
|
35° | D66mm*H48mm | 10-100W |
|
SOE-HB60-60
|
60° | D66mm*H34mm | 10-100W |
|
SOE-HB60-90
|
90° | D66mm*H17mm | 10-100W |
|
SOE-HB78-45
|
45° | D78mm*H44mm | 10-100W |
|
SOE-HB78-60
|
60° | D78mm*H40mm | 50-200W |
|
SOE-HB78-90
|
90° | D78mm*H35mm | 50-200W |
|
SOE-HB78-120
|
120° | D78mm*H26mm | 50-200W |
|
SOE-HB100-60
|
60° | D100mm*H39mm | 50-200W |
|
SOE-HB100-90
|
90° | D100mm*H35mm | 50-200W |
|
SOE-HB100-120
|
120° | D100mm*H33mm | 50-200W |
|
SOE-HB109-120
|
120° | D109mm*H33mm | 50-200W |
|
SOE-HB130-110
|
110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
