Product Details:
|
| Product Name: | Street LED Light Module For Tunnel Lamp , High Power Led Optical Reflector Lens | Lens Size: | L256.6*W78.6*9.1mm |
|---|---|---|---|
| PCB Size: | L228*W53*H1.5mm | Beam Angle: | 87x134 Degree 70x155 Degree |
| Match Led: | Lumileds K2, Edison A-1 A-5 S5, Bridgelux Chip Led | Material: | Optical Grade PC |
| Efficiency: | 91% | PCB Circuit: | 10 Series 3 Parallels |
| Led Voltage: | 3-3.6V | Lumen: | 160-170 Lm/W |
| High Light: | Outdoor LED Module,led street light module |
||
1. Dimension: L256*W78*7.1mm
2. Beam Angle: 87x134 degree , 70x155 degree
3. Match Led: High power led , K2 , P4
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, Led driver
6. Efficiency: >91%
Specifications:
| Product Name | Street LED Light Module For Tunnel Lamp , High Power Led Optical Reflector Lens |
| Model No | SOE-SL30W-LM87X134 |
| Main parts | 30W Lens+ Silicone gasket + AL PCB mounting leds + LED driver (Meanwell Led driver is available) |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | L256.6*W78.6*9.1mm |
| PCB Size | 233x55x1.5mm , PCB could design as clients reuqest |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
10 series 3 parallel |
| Led details | 3-3.6V , 160-170 lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America |

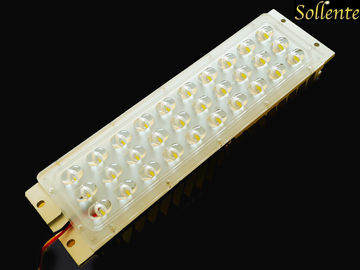

Led street Lighting Modules Pictures:
Led street Lighting Modules Lens Drawing:
87x134 degree Led Street Light Lens Distribution:
Features :
Related High power Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
|
SOE-SL30W-LM87X134
|
87X134° | 250x74x9.6mm | 228x53x1.5mm |
|
SOE-SL30W-LM70X155
|
70X155° | 250x74x9.6mm | 228x53x1.5mm |
|
SOE-SL30W-LM90X90
|
90x90° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-CR120
|
120° | 250x74x9.6mm | 229x53x1.5mm |
|
SOE-SL30W-LM90
|
90° | 250x74x9.6mm | 229x53x1.5mm |
Competitive Advantage:
1). Our High power led using high quality imported Bridgelux 45mil Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
