Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting

Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting
Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting

Large Image :  Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting

Product Details:
Place of Origin: China
Brand Name: Sollente
Model Number: SOE-SL30W-CR78x132
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week

Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting

Description
Product Name: Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting Lens Size: L256.6*W78.6*9.1mm
PCB Size: L228*W53*H1.5mm Beam Angle: 78x132 Degree
Match Led: 3535 SMD Material: Optical Grade PC
Efficiency: 91% PCB Circuit: 10 Series 3 Parallels
Led Voltage: 2.9-3.4V Lumen: 160 Lm/W
High Light:

Outdoor LED Module

,

led modular street light

Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting



Quick Details:

1. Dimension:     L256*W78*7.1mm

2. Beam Angle:   78x132 degree

3. Match Led:      SMD 3535 , Cree XTE , Rebel-E , Nichia 219A

4. Materials :       Optical Grade PC, Aluminm

5. Accessories:    Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency:        >91%







Specifications:

Product Name

100w Led street Lighting Modules , SMD 3535 Led Street Light Fitting

Model No SOE-SL30W-CR78x132
Main parts 30W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size L256.6*W78.6*9.1mm
PCB Size 233x55x1.5mm , PCB could design as clients reuqest
Driver enclosure plastic or aluminum case for choice
PCB Circuit

10 series 3 parallel

Cree XTE  2.9-3.4V , 160 lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America

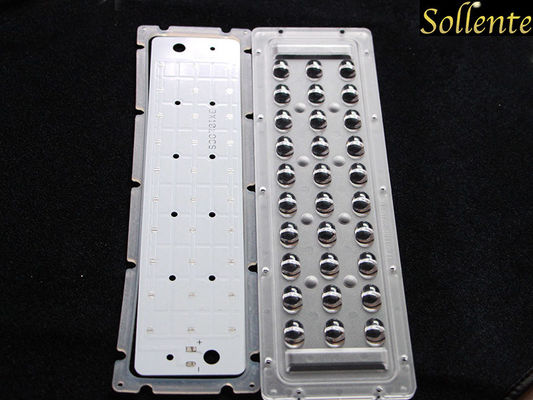

60w Led street Lighting Modules Pictures:

Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting 0







60w Led street Lighting Modules Lens Drawing:



Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting 1













78x132 degree Led Street Light Lens Distribution:



Outdoor LED Street Light Module , SMD 3535 100W LED Module For Street Light Fitting 2





Features :

  1.  This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps , each Led could use as 1-3w , one module could be 30W or 60W.
  2.  It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3.  Industry-leading thermal management utilizing technology
  4.  Operating temperature range: from 35 Celsius degree to 60 Celsius degree.
  5.  Optic lenses are available for projects that need smaller beam angles, like 90x90 degree, 87x134 degree , 70x155 degree , 120 degree









Related High power Led Street Light Lens:



Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SL30W-LM87X134



87X134° 250x74x9.6mm 228x53x1.5mm

SOE-SL30W-LM90X90



90x90° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-CR120



120° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-LM90



90° 250x74x9.6mm 229x53x1.5mm











Competitive Advantage:

1). Using high quality imported 3535 SMD LED , Cree XTE , XPG , XPE
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty












Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on





 Delivery and Shipping:

Trade Term EXW , FOB , CNF
Payment Term TT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT
