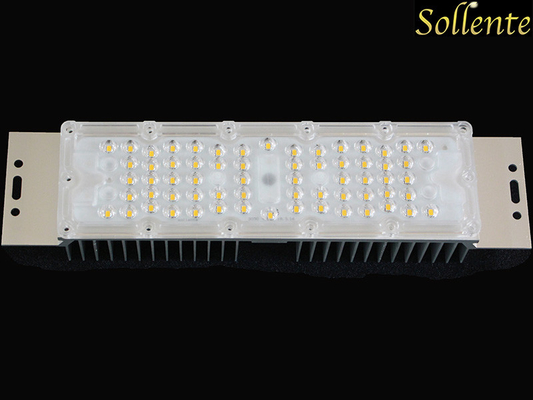

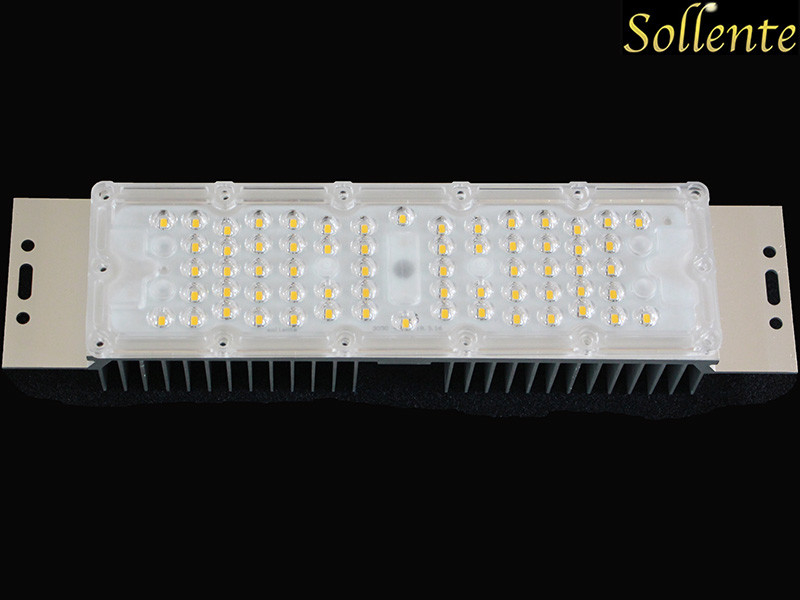

Product Details:
|
| Product Name: | Led Street Lamps Module | Lens Size: | 236x70x6.9mm |
|---|---|---|---|
| PCB Size: | L220*W54*T1.5mm | Beam Angle: | 90x120 Degree |
| Match Led: | 3030 SMD , OSRAM S5, Lumileds 2D | Material: | Optical Grade PC |
| Efficiency: | 91% | ||
| High Light: | IP65 Street Light Module,Street Light Module SMD3030,waterproof led module IP65 |
||
Features :
Specifications:
| Product Name | Led street Lamps Module |

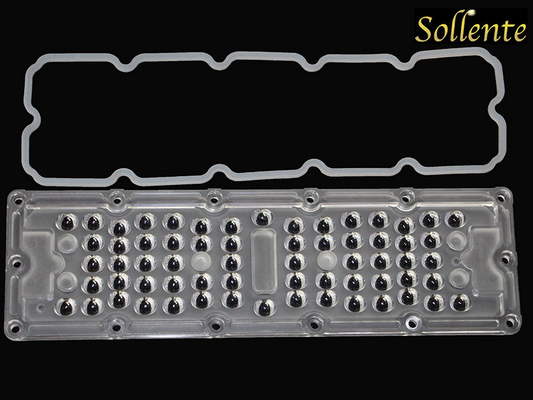

| Main parts | 64W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |

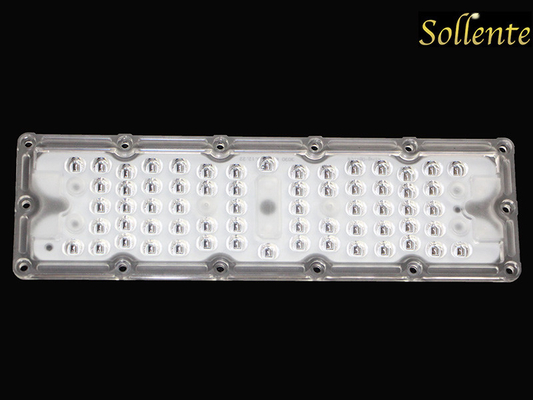

| Lens size | 236x70x6.9mm |
| PCB Size | 220x54x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit | 8 series 8 parallel |
| LED details | 6-6.8V , 150mA , 120-130lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America , Asia |
Led Street Light Lens Drawing:
90x120 degree Led Street Light Lens Distribution:
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
Delivery and Shipping:
| Trade Term | EXW , FOB , CNF |
| Payment Term | TT , PayPal , Western Union |
| Lead Time | 3-7 working days for samples order, 7-14 working days for bulk order |
Shipment Term | Sea, Air, Express DHL, Fedex, UPS, TNT |
