Product Details:
|

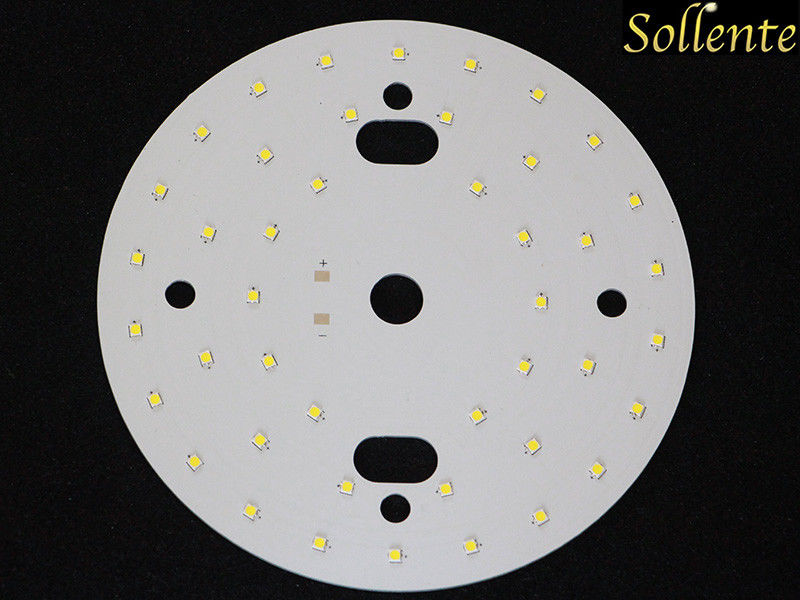

| Product Name: | 12V DC 44W PCB Module For Wide Angle 170 Degree Round SMD LED Ceiling Light | Lens Size: | Dia160mm X H5.38mm |
|---|---|---|---|
| Beam Angle: | 170 Degree | Match Led: | 3030 SMD , OSRAM S5, Lumileds 2D |
| Material: | Optical Grade PC | Efficiency: | 91% |
| Led Voltage: | 6 V/W | PCB Diameter: | 160mm |
| High Light: | 12V DC LED PCB Module,44W LED PCB Module,70 Degree LED Ceiling Light Module |
||
Product combined with Geometric Surface Design,High light efficiency;
On the basic character of 3030 series light, show the application of the Combination of optical and construction.
Indoor light Application:
Ceiling Light,
Office lighting,
commercial lighting
On the basic character of 3030 series light, show the application of
the Combination of optical and construction.

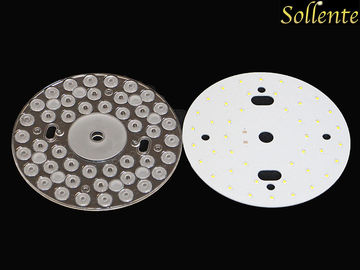

44 in 1 Lens Drawing:
Lens Distribution:
Other High bay lens:
| Product Name | Model | Beam Angle | Dimension |
| 44 in 1 lens | SOE-CL44-170 | 170° | Φ160mm |
| 44 in 1 PCB | SOE-CL44-170 | Φ160mm |
Advantages
Excellent Design. Adopt high brightness LEDs, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours. Impact and shock resistance, no UV and IR radiation. It is also reliable when working in low voltage.
Using aluminum housing and strong anti-corrosion, waterproof, dust-proof. With oxidation treatment on the surface of the radiator, it is durable and impact-resistant. The integrative structure simplify the spot wiring, it's more easy for installation and maintenance. Sealing parts are made of silicon rubber, which keeps oil-resistant, acid-resisting, alkali-resisting and heat-resistant.
1. Top grade waterproof rank : IP65
2. Long lifespan > 50,000 hrs
3. Low voltage, safe for human
4. Green Light, protect for environment
5. Low power consumption , high efficiency
6. Excellent heat output
Industry Leading heat dissipation design
Adopt AL6063 aluminum housing, IP65. Simple but original design, which ensures excellent ventilating effect, corrosion and wind resistance.
Unique elegant appearance
A new design concept about a conventional breakthrough in housing, for offering highly integration solving solution.
Led waterproof driver/ Mean Well driver:
Optional brands of Led driver, detached design of power supply. The isolating switching power supply, low voltage output, low harmonics, no strobe, high efficiency, ling life-span.
Storage: Do not store in dusty place, or expose under corrosive environment. Contact: Do not touch the lens surface with bare-hand. Please use gloves to
touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft
cloth.Do not use any commercial cleaning solvents.
Please take a reference of visiting LED manufacturer’s website for detail LED specification.
